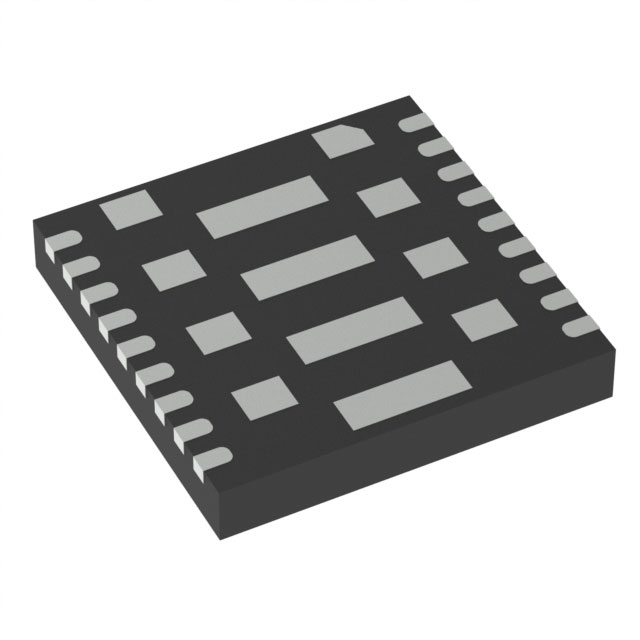

MP86963DUT-LF-P

NRND

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 20A 18QFN

Search across all available documentation for this part.

NRND

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 20A 18QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP86963DUT-LF-P

Applications	General Purpose
Current - Output / Channel [custom]	20 A
Features	Bootstrap Circuit, Diode Emulation
Interface	PWM
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	18-PowerWFDFN
Supplier Device Package	18-FCTQFN-EP (5x5)
Technology	Power MOSFET
Voltage - Load [Max]	21 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Features	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Applications	Current - Output / Channel [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Load Type	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Technology
MONOLITHIC POWER SYSTEMS (MPS) MP86963DUT-LF-Z	Bootstrap Circuit Diode Emulation	18-PowerWFDFN	4.5 V	21 V	Surface Mount	General Purpose	20 A	4.5 V	5.5 V	18-FCTQFN-EP (5x5)	Inductive	PWM	85 °C	-40 °C	Power MOSFET
MONOLITHIC POWER SYSTEMS (MPS) MP86963DUT-LF-P	Bootstrap Circuit Diode Emulation	18-PowerWFDFN	4.5 V	21 V	Surface Mount	General Purpose	20 A	4.5 V	5.5 V	18-FCTQFN-EP (5x5)	Inductive	PWM	85 °C	-40 °C	Power MOSFET

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver General Purpose Power MOSFET 18-FCTQFN-EP (5x5)
