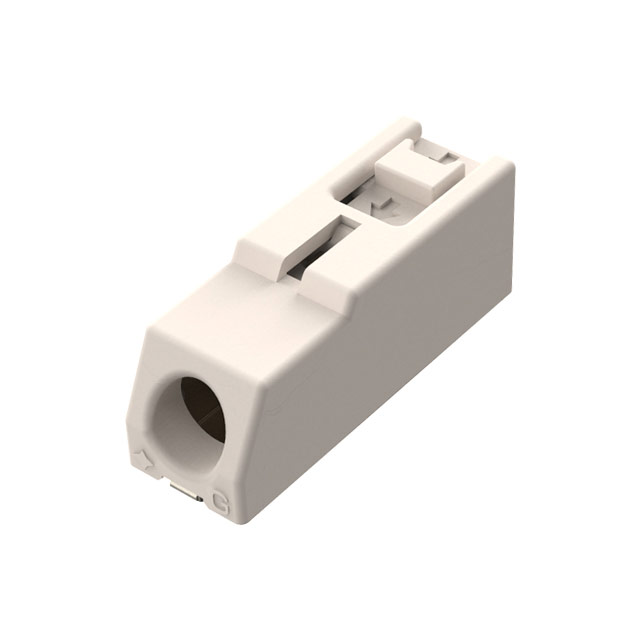

BJ302-01-A

Obsolete

GCT

WIRE TRAP PUSH IN, SMT,4.00MM PI

Search across all available documentation for this part.

Obsolete

GCT

WIRE TRAP PUSH IN, SMT,4.00MM PI

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Mounting Type	Contact Material	Housing Color	Style	Pitch [x]	Pitch [x]	Contact Finish	Current Rating (Amps)	Number of Positions
GCT BJ302-03-A	Liquid Crystal Polymer (LCP)	Poke-In Wire Receptacle	Solder	-40 °C	105 ░C	24 AWG	17.5 AWG	50 V	Surface Mount Right Angle	Copper Alloy	Natural	Board to Cable/Wire	4 mm	0.157 in	Tin	8 A
GCT BJ302-02-A	Liquid Crystal Polymer (LCP)	Poke-In Wire Receptacle	Solder	-40 °C	105 ░C	24 AWG	17.5 AWG	50 V	Surface Mount Right Angle	Copper Alloy	Natural	Board to Cable/Wire	4 mm	0.157 in	Tin	8 A	2
GCT BJ302-01-A	Liquid Crystal Polymer (LCP)	Poke-In Wire Receptacle	Solder	-40 °C	105 ░C	24 AWG	17.5 AWG	50 V	Surface Mount Right Angle	Copper Alloy	Natural	Board to Cable/Wire			Tin	8 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 1 Position Receptacle, Poke-In Wire Board to Cable/Wire Solder
