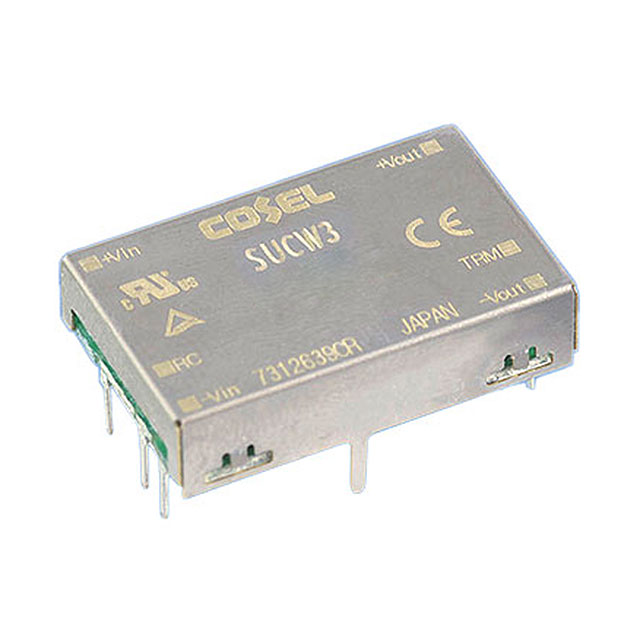

SUCW30515C-C

Active

Cosel USA, Inc.

DC DC CONVERTER +/-15V 3W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC DC CONVERTER +/-15V 3W

Technical Specifications

Parameters and characteristics for this part

Specification	SUCW30515C-C

Applications	ITE (Commercial)
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	74 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module
Power (Watts)	3 W
Size / Dimension [x]	0.98 "
Size / Dimension [x]	25 mm
Size / Dimension [y]	0.61 in
Size / Dimension [y]	15.5 mm
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Type	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	500 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Package / Case	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Voltage - Isolation	Efficiency	Mounting Type	Number of Outputs	Features
Cosel USA, Inc. SUCW30515C-G	15 V	4.5 V	Isolated Module	9 V	85 °C	-40 °C	100 mA	100 mA	7-DIP Module	3 W	ITE (Commercial)	0.28 "	0.61 in	7 mm	0.98 "	15.5 mm	25 mm	-15 V	500 V	74 %	Through Hole	2
Cosel USA, Inc. SUCW30515B	15 V	4.5 V	Isolated Module	9 V	85 °C	-40 °C	100 mA	100 mA	7-SMD Module	3 W	ITE (Commercial)	0.28 "	0.61 in	7 mm	0.98 "	15.5 mm	25 mm	-15 V	500 V	74 %	Surface Mount	2
Cosel USA, Inc. SUCW30515C-C	15 V	4.5 V	Conformal Coated Isolated Module	9 V	85 °C	-40 °C	100 mA	100 mA	7-DIP Module	3 W	ITE (Commercial)	0.28 "	0.61 in	7 mm	0.98 "	15.5 mm	25 mm	-15 V	500 V	74 %	Through Hole	2
Cosel USA, Inc. SUCW30515BP	15 V	4.5 V	Isolated Module	9 V	85 °C	-40 °C	100 mA	100 mA	7-SMD Module	3 W	ITE (Commercial)	0.28 "	0.61 in	7 mm	0.98 "	15.5 mm	25 mm	-15 V	500 V	74 %	Surface Mount	2
Cosel USA, Inc. SUCW30515C	15 V	4.5 V	Isolated Module	9 V	85 °C	-40 °C	100 mA	100 mA	7-DIP Module		ITE (Commercial)	0.28 "	0.61 in	7 mm	0.98 "	15.5 mm	25 mm	-15 V	500 V	74 %	Through Hole	2	OCP Remote On/Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.60

General part information

Isolated Module, Conformal Coated DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 9V Input
