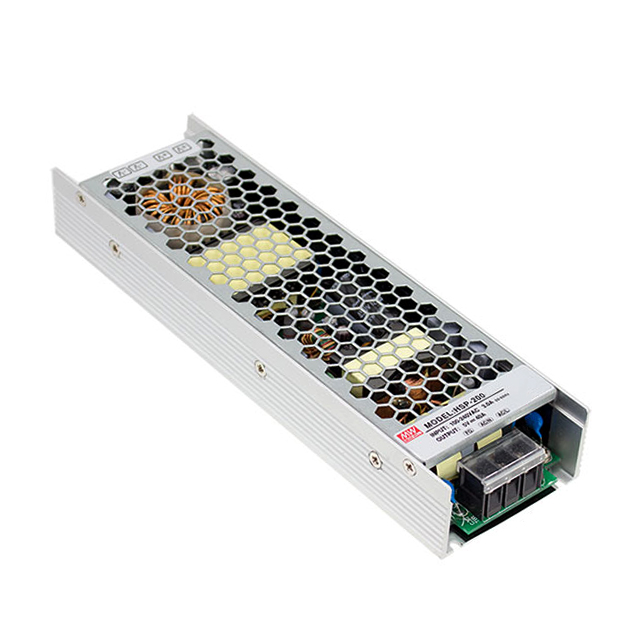

HSP-200-5
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSP-200-5
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSP-200-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, cURus, CB, CCC, CE |
| Current - Output 1 | 40 A |
| Efficiency | 88.5 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 210 mm |
| Size / Dimension [x] | 8.27 in |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Type | Conformal Coated, Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 60.50 | |
| 5 | $ 57.00 | |||
| 10 | $ 55.55 | |||
| 25 | $ 53.70 | |||
Description
General part information
HSP-200 Series
Enclosed, Conformal Coated AC DC Converters 1 Output 5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
