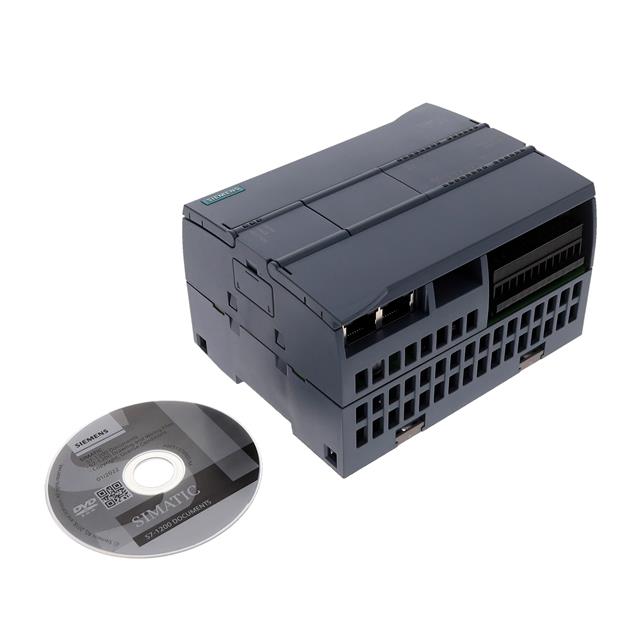

6ES72151AG400XB0
ActiveCPU 1215C, DC/DC/DC, 14DI/10DO/2
Deep-Dive with AI
Search across all available documentation for this part.
6ES72151AG400XB0
ActiveCPU 1215C, DC/DC/DC, 14DI/10DO/2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6ES72151AG400XB0 |
|---|---|
| Approval Agency | UL, KC, cULus, RCM, FM, CE |
| Display Type | No Display |
| Expandable | False |
| Memory Size | 125 kB |
| Number of Inputs and Type | 14 |
| Number of Inputs and Type | Digital |
| Number of Outputs and Type [custom] | Pulse (4) |
| Number of Outputs and Type [custom] | 10 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Voltage - Supply [Max] | 28.8 VDC |
| Voltage - Supply [Min] | 20.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1106.86 | |
| 10 | $ 850.18 | |||
Description
General part information
6ES72151 Series
The Siemens 6ES72151AG400XB0 is designed for industrial automation and control applications. It operates with a supply voltage range of 20.4 to 28.8V DC and features 14 digital inputs and 10 digital outputs, including 4 high-speed pulse train outputs. The device supports programming in LAD, FBD, and SCL languages and is IEC 61000-4-6 compliant. It offers 125kB of working memory and 4MB of load memory. With certifications including CE, UL, and FM, it ensures reliability and safety for various industrial environments.
