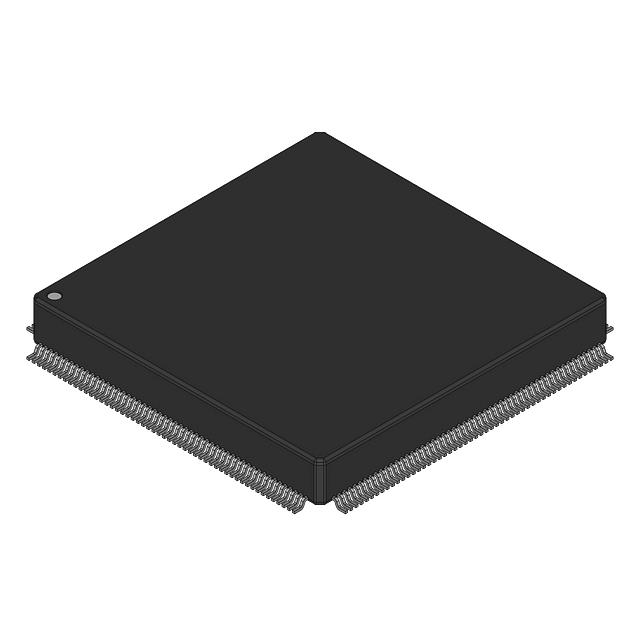

AT94K40AL-25DQU
ActiveAtmel
FPGA, 2304 CLBS, 40000 GATES, 18
Deep-Dive with AI
Search across all available documentation for this part.
AT94K40AL-25DQU
ActiveAtmel
FPGA, 2304 CLBS, 40000 GATES, 18
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT94K40AL-25DQU |
|---|---|
| Core Type | 8-Bit AVR |
| Data SRAM Bytes [Max] | 16 K |
| Data SRAM Bytes [Min] | 4 K |
| FPGA Gates | 40K |
| FPGA SRAM | 18 kb |
| Interface | UART, I2C |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 208-BFQFP |
| Program SRAM Bytes [Max] | 32 K |
| Program SRAM Bytes [Min] | 20 K |
| Speed | 18 MHz |
| Supplier Device Package | 208-PQFP (28x28) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 8 | $ 40.48 | |
| Tray | 24 | $ 40.03 | ||
Description
General part information
AT94K40 Series
FPGA, 2304 CLBS, 40000 GATES, 18
