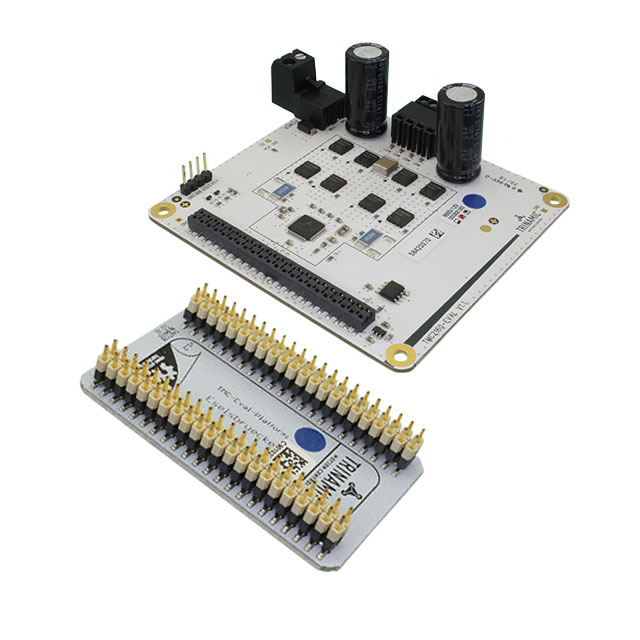

TMC2160-EVAL

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC2160

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC2160

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - Stepper	Function	Output Configuration	Technology	Supplier Device Package	Interface	Current - Output	Step Resolution [Max]	Step Resolution [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Applications	Mounting Type	Secondary Attributes	Contents	Type	Utilized IC / Part	Supplied Contents	Motor Type - AC, DC
Analog Devices Inc./Maxim Integrated TMC2160-TA-T	-40 °C	125 ¯C	Bipolar	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Power MOSFET	48-TQFP-EP (7x7)	SPI Step/Direction	20 A	1	0.00390625	50 VDC	10 VDC	48-TQFP Exposed Pad	10 V	55 V	Automation Control Industrial Medical	Surface Mount
Analog Devices Inc./Maxim Integrated TMC2160-BOB																			SPI Interface(s)	Board(s)	Power Management	TMC2160	Board(s)
Analog Devices Inc./Maxim Integrated TMC2160A-TA-X	-40 °C	125 ¯C	Bipolar	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	BCD MOS External Power MOSFETs	48-TQFP-EP (7x7)	SPI Step/Direction	20 A	1	0.00390625	50 VDC	10 VDC	48-TQFP Exposed Pad	10 V	55 V	Automation Control Industrial Medical	Surface Mount						Brushed DC
Analog Devices Inc./Maxim Integrated TMC2160-EVAL																			SPI Interface(s)	Board(s)	Power Management	TMC2160	Board(s)
Analog Devices Inc./Maxim Integrated TMC2160-TA	-40 °C	125 °C	Bipolar	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Power MOSFET	48-TQFP-EP (7x7)	SPI Step/Direction	20 A	1	0.00390625	50 VDC	10 VDC	48-TQFP Exposed Pad	10 V	55 V	Automation Industrial Multipurpose	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.05

General part information

TMC2160 Landungsbrücke, Startrampe Motor Controller/Driver, Stepper Power Management Evaluation Board
