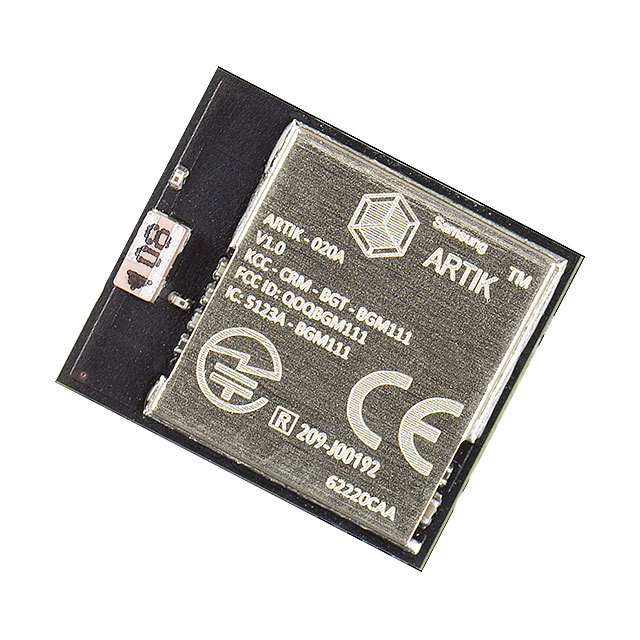

ARTIK-020-AV2R
ObsoleteSamsung Semiconductor, Inc.
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARTIK-020-AV2R
ObsoleteSamsung Semiconductor, Inc.
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARTIK-020-AV2R |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 8.7 mA |
| Current - Transmitting | 8.2 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 32 kB, 256 kB |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -92 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARTIK-020 Series
Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
