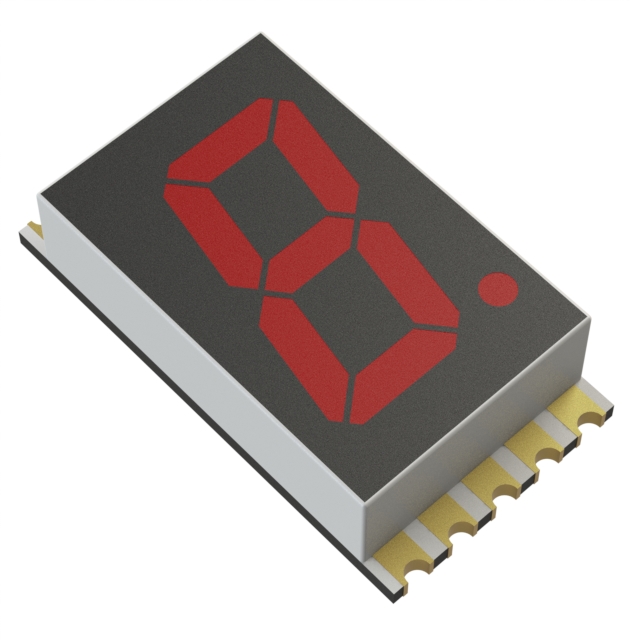

INND-SS30DRCB

Active

Inolux

DISPLAY 7-SEG 0.3" SGL RED 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

INND-SS30DRCB

Active

Inolux

DISPLAY 7-SEG 0.3" SGL RED 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	INND-SS30DRCB

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW
Size / Dimension [x]	12 mm
Size / Dimension [x]	0.472 in
Size / Dimension [y]	0.287 in
Size / Dimension [y]	7.3 mm
Size / Dimension [z]	0.124 in
Size / Dimension [z]	3.15 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	645 nm

INND-SS30 Series

Part	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Number of Characters [custom]	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Display Type	Package / Case	Power Dissipation (Max) [Max]	Current - Test	Wavelength - Peak
Inolux INND-SS30WAB	19.3 mcd	12 mm	0.287 in	0.124 in	3.15 mm	7.3 mm	0.472 in	3.2 V	White	1	Common Anode	0.3 in	7.62 mm	7-Segment	10-SMD No Lead	114 mW	20 mA
Inolux INND-SS30YCG	8 mcd	12 mm	0.287 in	0.124 in	3.15 mm	7.3 mm	0.472 in	2 V	Yellow	1	Common Cathode	0.3 in	7.62 mm	7-Segment	10-SMD No Lead	70 mW	20 mA	592 nm
Inolux INND-SS30DRCB	2 mcd	12 mm	0.287 in	0.124 in	3.15 mm	7.3 mm	0.472 in	2 V	Red	1	Common Cathode	0.3 in	7.62 mm	7-Segment	10-SMD No Lead	70 mW	20 mA	645 nm
Inolux INND-SS30YGAB	2 mcd	12 mm	0.287 in	0.124 in	3.15 mm	7.3 mm	0.472 in	2 V	Yellow-Green	1	Common Anode	0.3 in	7.62 mm	7-Segment	10-SMD No Lead	70 mW	20 mA	572 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 0.51

Description

General part information

INND-SS30 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.472" H x 0.287" W x 0.124" D (12.00mm x 7.30mm x 3.15mm) 10-SMD, No Lead
