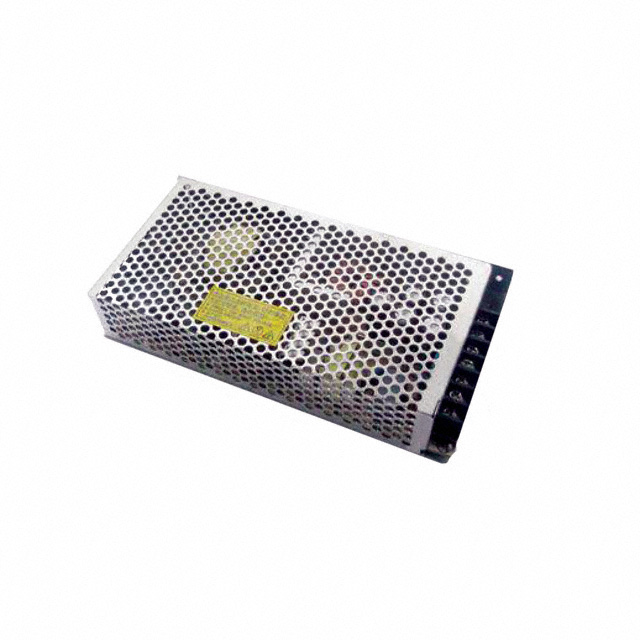

QPD-150-12
ObsoleteQualtek
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
QPD-150-12
ObsoleteQualtek
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QPD-150-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 12.5 A |
| Efficiency | 83 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 199 mm |
| Size / Dimension [x] | 7.83 in |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 176 VAC, 88 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 58.04 | |
| 5 | $ 56.29 | |||
| 10 | $ 54.53 | |||
Description
General part information
QPD-150 Series
Enclosed AC DC Converters 1 Output 12V 88 ~ 132 VAC, 176 ~ 264 VAC Input
