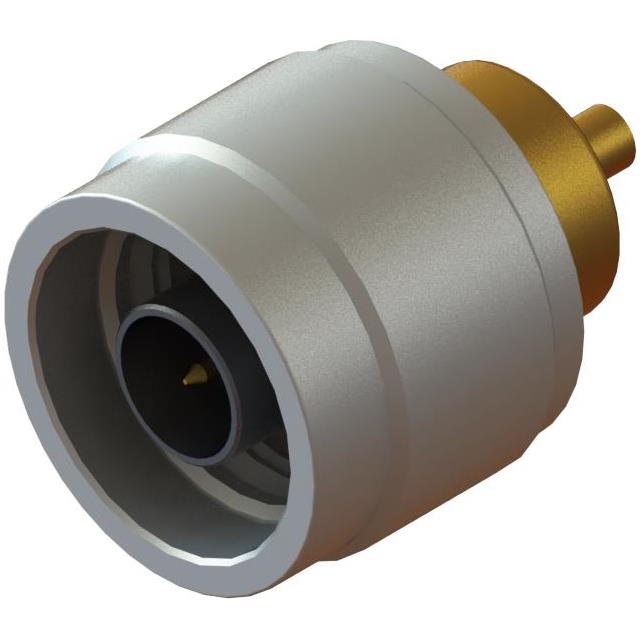

5011-00035

Active

Amphenol SV Microwave

CONN N PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN N PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	5011-00035

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-45 °C
Shield Termination	Solder

Part	Mating Cycles	Center Contact Material	Housing Color	Impedance	Body Material	Connector Style	Connector Type	Cable Group	Cable Group	Frequency - Max [Max]	Center Contact Plating	Mounting Type	Body Finish	Number of Ports	Contact Termination	Shield Termination	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol SV Microwave 5011-00035	500	Brass	Silver	50 Ohms	Brass	N Type	Male Pin Plug	RG-402 (.141" Flexible)	0.141 in	12.4 GHz	Gold	Free Hanging (In-Line)	Nickel	1	Solder	Solder	Polytetrafluoroethylene (PTFE)	120 °C	-45 °C
Amphenol SV Microwave 5011-00034	500	Brass	Silver	50 Ohms	Brass	N Type	Male Pin Plug	RG-405	0.085 in	12.4 GHz	Gold	Free Hanging (In-Line)	Nickel	1	Solder	Solder	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 49.87

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
