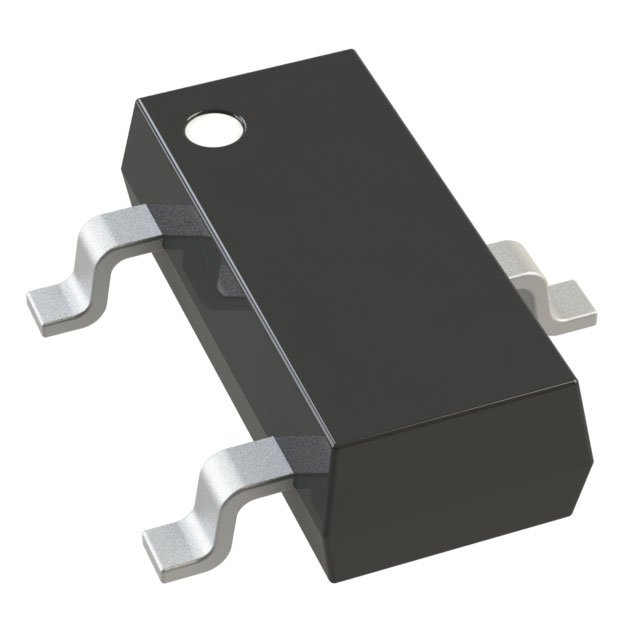

1PS70SB10,115

Active

Freescale Semiconductor - NXP

DIODE SCHOTTKY 30V 200MA SOT323

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

DIODE SCHOTTKY 30V 200MA SOT323

Technical Specifications

Parameters and characteristics for this part

Specification	1PS70SB10,115

Capacitance @ Vr, F	10 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	2 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	SC-70, SOT-323
Qualification	AEC-Q101
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	800 mV

Part	Operating Temperature - Junction	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Speed	Package / Case	Grade	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Capacitance @ Vr, F
Freescale Semiconductor - NXP 1PS70SB10,115	150 °C	AEC-Q101	30 V	Surface Mount	Any Speed	200 mA	SC-70 SOT-323	Automotive	200 mA	2 µA	800 mV	Schottky	SOT-323	10 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 200mA Surface Mount SOT-323
