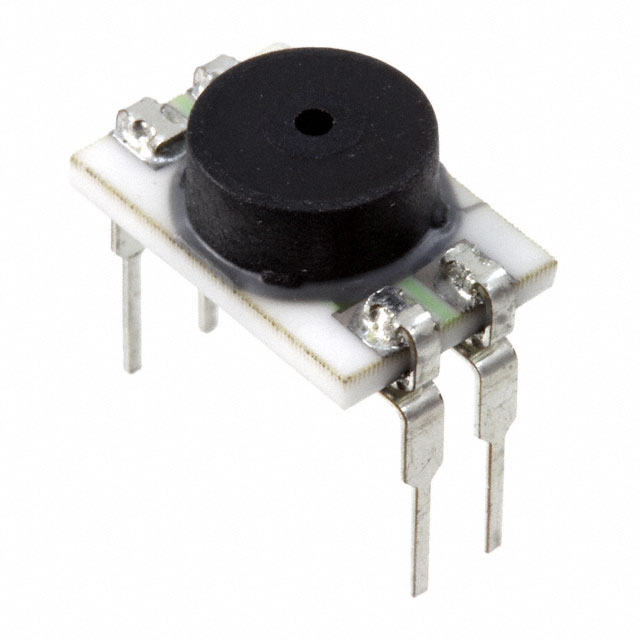

TBPDPNS001PGUCV
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 1PSIG 0.26" .0075V 4DIP
Deep-Dive with AI
Search across all available documentation for this part.
TBPDPNS001PGUCV
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 1PSIG 0.26" .0075V 4DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBPDPNS001PGUCV |
|---|---|
| Accuracy | 0.2 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 12.7 PSI |
| Maximum Pressure [Max] | 87.56 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 6.89 kPa |
| Operating Pressure | 1 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 5 V |
| Output [Max] | 7.5 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-DIP, Top Port |
| Package / Case | 11.5 mm |
| Package / Case | 0.453 in |
| Port Size | 6.5 mm |
| Port Size | 0.26 in |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Supplier Device Package | 4-DIP |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TBPDPNS Series
Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.26" (6.5mm) Tube 0 mV ~ 7.5 mV (5V) 4-DIP (0.453", 11.50mm), Top Port
