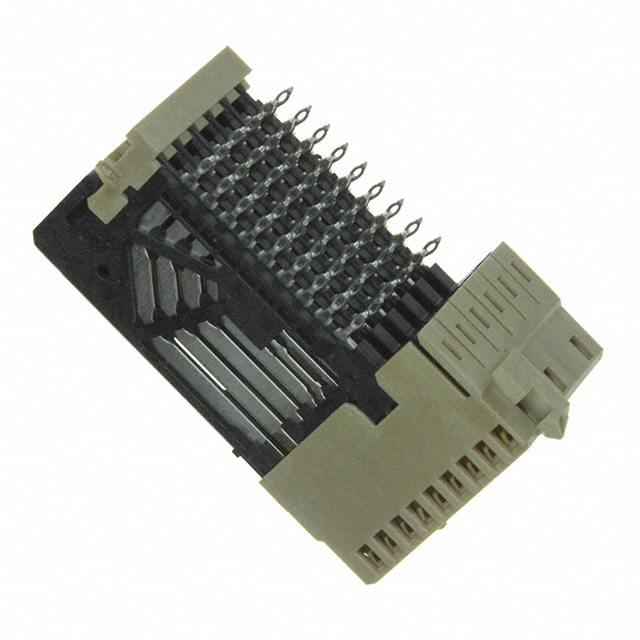

10053656-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10053656-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	18
Contact Layout, Typical [custom]	18
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Color	Connector Type	Material Flammability Rating	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions Loaded	Number of Columns	Connector Usage	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Termination	Number of Positions	Contact Finish	Mounting Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 10053656-101LF	Natural	Receptacle Female Sockets	UL94 V-0	9	0.055 in	1.4 mm	All	6	Backplane	18	18	Press-Fit	54	Gold	Board Edge Right Angle Through Hole	High Speed	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
