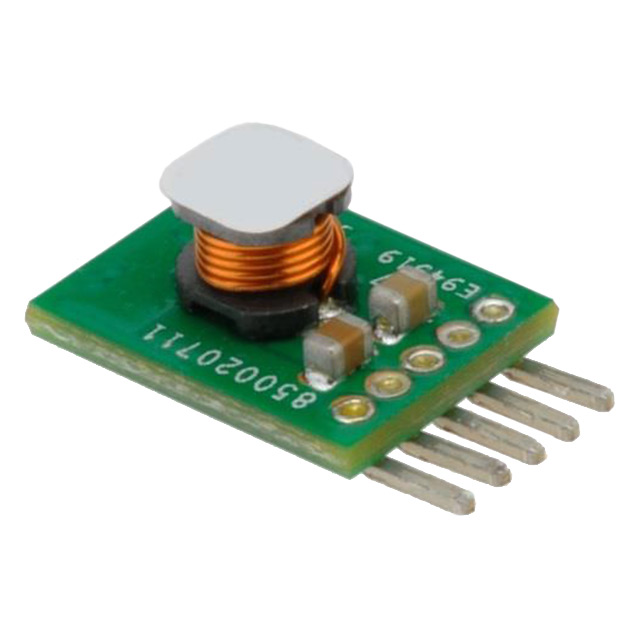

IND011SIP
OmniOn Power™
DC DC CONVERTER 0.6-5.5V 11W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IND011SIP
OmniOn Power™
DC DC CONVERTER 0.6-5.5V 11W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IND011SIP |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 93.3 % |
| Features | OCP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 11 W |
| Size / Dimension [x] | 10.4 mm |
| Size / Dimension [x] | 0.41 " |
| Size / Dimension [y] | 0.32 in |
| Size / Dimension [y] | 8.1 mm |
| Size / Dimension [z] | 13.5 mm |
| Size / Dimension [z] | 0.53 " |
| Supplier Device Package | 5-SIP |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 9.6 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.12 | |
| 5 | $ 4.06 | |||
| 10 | $ 4.00 | |||
| 25 | $ 3.88 | |||
| 40 | $ 3.77 | |||
| 80 | $ 3.65 | |||
| 315 | $ 3.53 | |||
| 630 | $ 3.29 | |||
Description
General part information
IND011 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 2A 9.6V - 14V Input
