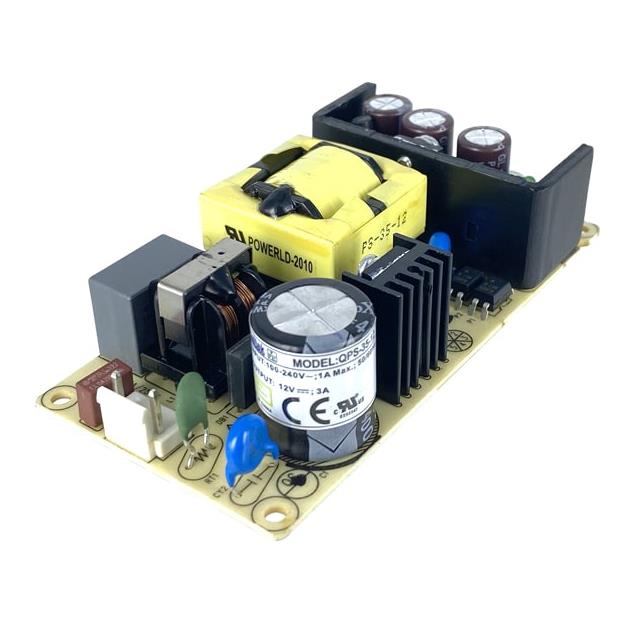

QPS-35-24

Active

Qualtek

AC/DC CONVERTER 24V 36W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 24V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	QPS-35-24

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	1.5 A
Efficiency	83 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	36 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	51 mm
Size / Dimension [y]	2.01 in
Size / Dimension [z]	0.99 "
Size / Dimension [z]	25.1 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Applications	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Type	Efficiency	Number of Outputs	Power (Watts)	Current - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
Qualtek QPS-35-36	ITE (Commercial)	36 V	4 in	0.99 "	101.6 mm	25.1 mm	51 mm	2.01 in	CB CE cURus	90 VAC	264 VAC	3000 V	Open Frame	84 %	1	36 W	1 A	Chassis Mount	65 °C	-20 °C	Adjustable Output Universal Input
Qualtek QPS-35-5	ITE (Commercial)	5 V	4 in	0.99 "	101.6 mm	25.1 mm	51 mm	2.01 in	CB CE cURus	90 VAC	264 VAC	3000 V	Open Frame	78 %	1	30 W	6 A	Chassis Mount	65 °C	-20 °C	Adjustable Output Universal Input
Qualtek QPS-35-48	ITE (Commercial)	48 V	4 in	0.99 "	101.6 mm	25.1 mm	51 mm	2.01 in	CB CE cURus	90 VAC	264 VAC	3000 V	Open Frame	86 %	1	36 W	750 mA	Chassis Mount	65 °C	-20 °C	Adjustable Output Universal Input
Qualtek QPS-35-24	ITE (Commercial)	24 V	4 in	0.99 "	101.6 mm	25.1 mm	51 mm	2.01 in	CB CE cURus	90 VAC	264 VAC	3000 V	Open Frame	83 %	1	36 W	1.5 A	Chassis Mount	65 °C	-20 °C	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 24.45

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
