TMA-4MS-4MS-00

Active

CarlisleIT

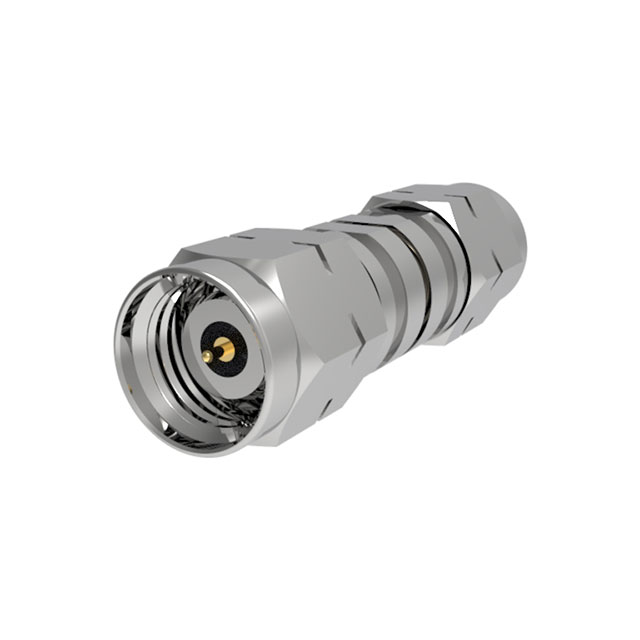

MW ADAPTER 2.4(M) TO 2.4(M)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 2.4(M) TO 2.4(M)

Technical Specifications

Parameters and characteristics for this part

Part	Conversion Type	Adapter Type	Frequency - Max [Max]	Body Material	Convert To (Adapter End)	Convert To (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Impedance	Style	Center Contact Material	Mounting Type	Convert From (Adapter End)	Center Gender
CarlisleIT TMA-4MS-9FS-00	Between Series	Plug to Jack	40 GHz	Stainless Steel	2.92 mm	OS-2.9 Jack Female Socket	2.92 mm	2.4 mm	50 Ohms	Straight	Beryllium Copper	Free Hanging (In-Line)	2.4 mm
CarlisleIT TMA-4MS-9MS-00	Between Series	Plug to Plug	40 GHz	Stainless Steel		2.92mm (OS-2.9) Plug Male Pin	2.92 mm	2.4 mm	50 Ohms	Straight	Beryllium Copper	Free Hanging (In-Line)	2.4 mm	Male to Male
CarlisleIT TMA-4MS-4FS-00	Same Series	Plug to Jack	50 GHz	Stainless Steel	2.4 mm		2.4 mm	2.4 mm	50 Ohms	Straight	Beryllium Copper	Free Hanging (In-Line)	2.4 mm
CarlisleIT TMA-4MS-5MS-00	Between Series	Plug to Plug	26.5 GHz	Stainless Steel			3.5 mm	2.4 mm	50 Ohms	Straight	Beryllium Copper	Free Hanging (In-Line)	2.4 mm	Male to Male
CarlisleIT TMA-4MS-5FS-00	Between Series	Plug to Jack	26.5 GHz	Stainless Steel		3.5mm Jack Female Socket	3.5 mm	2.4 mm	50 Ohms	Straight	Beryllium Copper	Free Hanging (In-Line)	2.4 mm
CarlisleIT TMA-4MS-4MS-00	Same Series	Plug to Plug	50 GHz	Stainless Steel		2.4mm (APC-2.4 OS-50) Plug Male Pin	2.4 mm	2.4 mm	50 Ohms	Straight	Beryllium Copper	Free Hanging (In-Line)	2.4 mm	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
