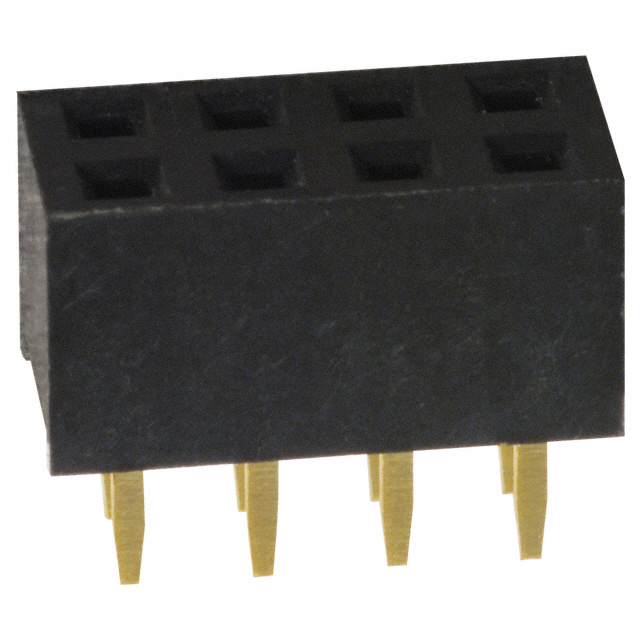

PPPN042AFCN

Obsolete

Sullins Connector Solutions

CONN HDR 8POS 0.079 GOLD PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 8POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPPN042AFCN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Post	Insulation Material	Material Flammability Rating	Contact Shape	Number of Positions	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Contact Finish Thickness - Mating	Current Rating (Amps)
Sullins Connector Solutions PPPN042AFCN	2	Gold	All	Female Socket	Flash	Polyester	UL94 V-0	Square	8	Gold	0.079 in	2 mm	Header	0.079 in	2 mm	Phosphor Bronze	-40 °C	105 ░C	Solder	0.094 in	2.4 mm	Push-Pull	4.3 mm	0.169 "	Black	Through Hole	Flash
Sullins Connector Solutions PPPN042GFNS	2	Gold	All	Female Socket	Flash	Polyester	UL94 V-0	Square	8	Gold	0.079 in	2 mm	Header Top or Bottom Entry	0.079 in	2 mm	Phosphor Bronze	-40 °C	105 ░C	Solder			Push-Pull			Black	Surface Mount	Flash	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Header Connector 0.079" (2.00mm) Through Hole Gold
