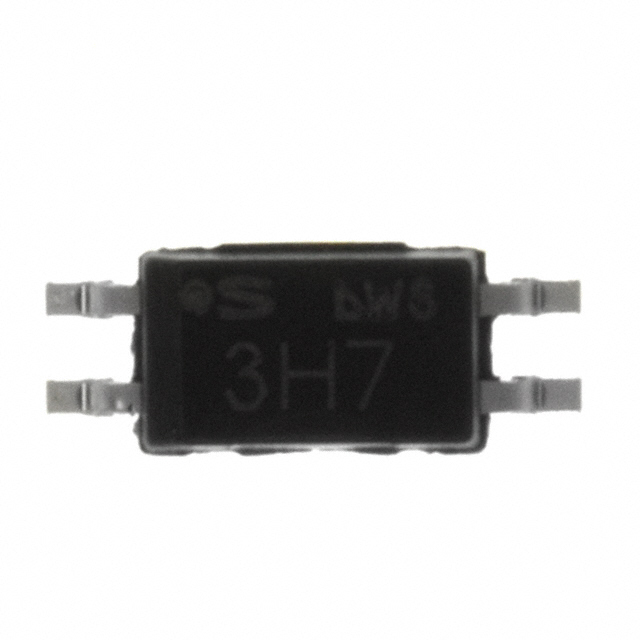

PC3H710NIP1H
ActiveSHARP/Socle Technology
OPTOISOLATOR TRANSISTOR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC3H710NIP1H
ActiveSHARP/Socle Technology
OPTOISOLATOR TRANSISTOR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC3H710NIP1H |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 10 mA |
| Current - Output / Channel | 500 µA |
| Current Transfer Ratio (Max) | 700 % |
| Current Transfer Ratio (Min) [Min] | 100 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | 1.81 mOhm |
| Package / Case | 4-SOIC |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Rise / Fall Time (Typ) [custom] | 4 µs |
| Supplier Device Package | 4-SMD |
| Vce Saturation (Max) | 200 mV |
| Voltage - Isolation | 2500 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.71 | |||
| 100 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.71 | |||
| 100 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 3500 | $ 0.34 | ||
| 7000 | $ 0.33 | |||
| 10500 | $ 0.33 | |||
| 24500 | $ 0.32 | |||
Description
General part information
PC3H710 Series
Optoisolator Transistor Output 2500Vrms 1 Channel 4-SMD
