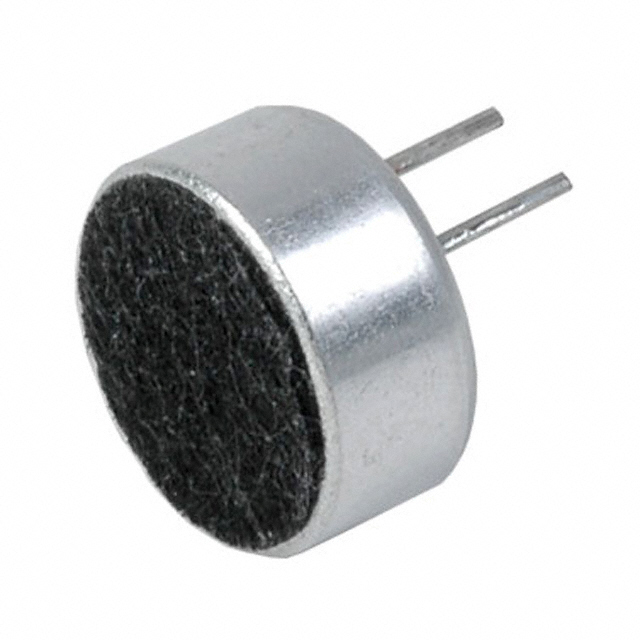

CMA-4544PF-W
ActiveCUI Devices
MIC COND ANLG OMNI -44DB 0.382"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMA-4544PF-W
ActiveCUI Devices
MIC COND ANLG OMNI -44DB 0.382"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMA-4544PF-W |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height (Max) | 4.65 mm |
| Height (Max) [Max] | 0.183 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity | -44 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 9.7 mm |
| Size / Dimension [diameter] | 0.382 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.78 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.56 | |||
| 300 | $ 0.52 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 5000 | $ 0.40 | |||
Description
General part information
CMA-4544 Series
20 Hz ~ 20 kHz Analog Microphone Electret Condenser 3 V ~ 10 V Omnidirectional (-44dB ±2dB) PC Pins
