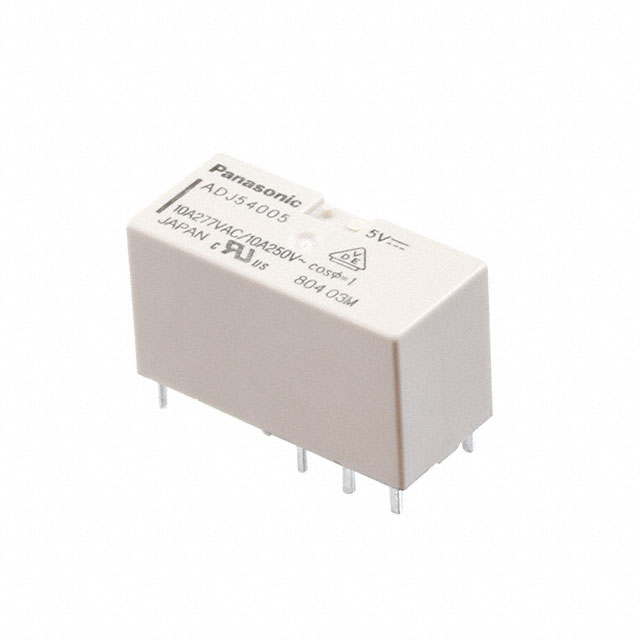

ADJ54005
ActivePanasonic Electric Works
RELAY GEN PURPOSE DPDT 10A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
ADJ54005
ActivePanasonic Electric Works
RELAY GEN PURPOSE DPDT 10A 5V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | ADJ54005 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 50 mA |
| Coil Resistance | 100 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.52 | |
| 10 | $ 20.02 | |||
| 25 | $ 19.02 | |||
| 50 | $ 18.02 | |||
| 100 | $ 17.02 | |||
| 300 | $ 15.51 | |||
| 500 | $ 14.51 | |||
Description
General part information
ADJ540 Series
General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
