EO0601000000G

Active

Amphenol Anytek

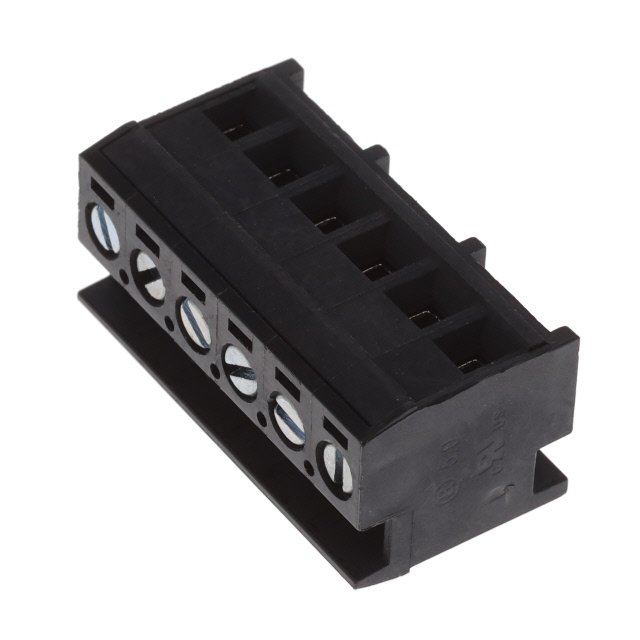

TERM BLOCK PLUG 6POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

EO0601000000G

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS 90DEG 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EO0601000000G

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Housing Material	Thermoplastic
Insulation Height [z]	0.587 in
Insulation Height [z]	14.91 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	6
Screw Size	M3
Termination Style	Screw
Torque - Screw	0.51 Nm
Torque - Screw	4.5 Lb-In
Type	Plug for Unshrouded Header
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length [Max]	6 mm
Wire Strip Length [Min]	5 mm

EO Series

Part	Type	Contact Mating Finish	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Number of Positions	Plug Wire Entry	Termination Style	Screw Size	Color	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Positions Per Level	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Wire Strip Length [Min]	Wire Strip Length [Max]	Number of Levels	Insulation Height [z]	Insulation Height [z]
Amphenol Anytek EO040102A000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze	15.9 mm	0.626 in	0.51 Nm	4.5 Lb-In	4	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	4	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1
Amphenol Anytek EO0601000000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze			0.51 Nm	4.5 Lb-In	6	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	6	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1	0.587 in	14.91 mm
Amphenol Anytek EO080102A000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze	15.9 mm	0.626 in	0.51 Nm	4.5 Lb-In	8	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	8	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1
Amphenol Anytek EO1001000000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze			0.51 Nm	4.5 Lb-In	10	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	10	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1	0.587 in	14.91 mm
Amphenol Anytek EO0301000000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze			0.51 Nm	4.5 Lb-In		90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	3	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1	0.587 in	14.91 mm
Amphenol Anytek EO0501020000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze			0.51 Nm	4.5 Lb-In		90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	5	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1	0.587 in	14.91 mm
Amphenol Anytek EO120102A000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze	15.9 mm	0.626 in	0.51 Nm	4.5 Lb-In	12	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	12	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1
Amphenol Anytek EO210102A000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze	15.9 mm	0.626 in	0.51 Nm	4.5 Lb-In	21	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	21	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1
Amphenol Anytek EO0301020000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze			0.51 Nm	4.5 Lb-In		90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	3	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1	0.587 in	14.91 mm
Amphenol Anytek EO0701020000G	Plug for Unshrouded Header	Tin	300 V	-40 °C	115 °C	Phosphor Bronze			0.51 Nm	4.5 Lb-In	7	90 °	Screw	M3	Black	Thermoplastic	5 mm	0.197 in	UL94 V-0	7	28 AWG	12 AWG	Free Hanging (In-Line)	5 mm	6 mm	1	0.587 in	14.91 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.62
		10	$ 1.23
		25	$ 1.14
		50	$ 1.02
		100	$ 1.00
		250	$ 0.88

Description

General part information

EO Series

6 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
