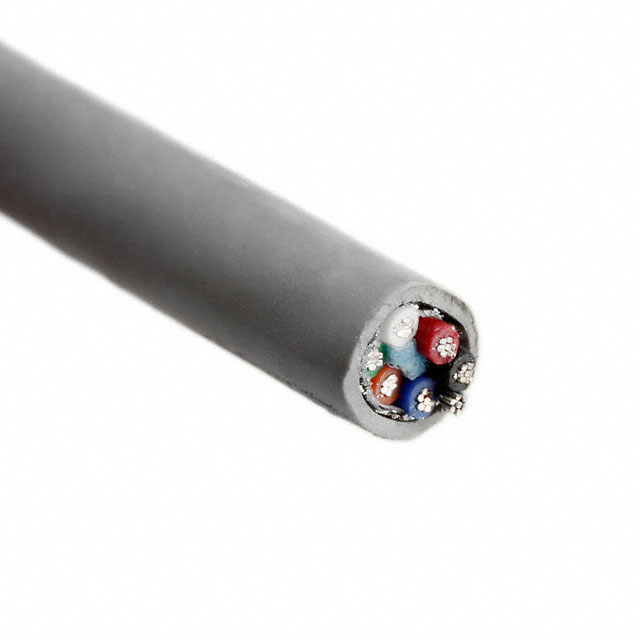

M5364 SL005

Active

ALPHA WIRE

CABLE 6COND 20AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 20AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M5364 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.304 in
Jacket (Insulation) Diameter [diameter]	7.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Material	Shield Coverage	Number of Conductors	Voltage	Wire Gauge	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Features	Shield Material	Jacket Color
ALPHA WIRE M5364 SL005	Poly-Vinyl Chloride (PVC)	-20 C	80 C	UL Style 2464	0.304 in	7.72 mm	30.5 m	100 ft	Copper Tinned	70 % 100 %	6	300 V	20 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	28	7	Braid Foil	Drain Wire Rip Cord	Aluminum Copper Tinned	Slate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.71

General part information

6 Conductor Multi-Conductor Cable Slate 20 AWG Foil, Braid 100.0' (30.5m)
