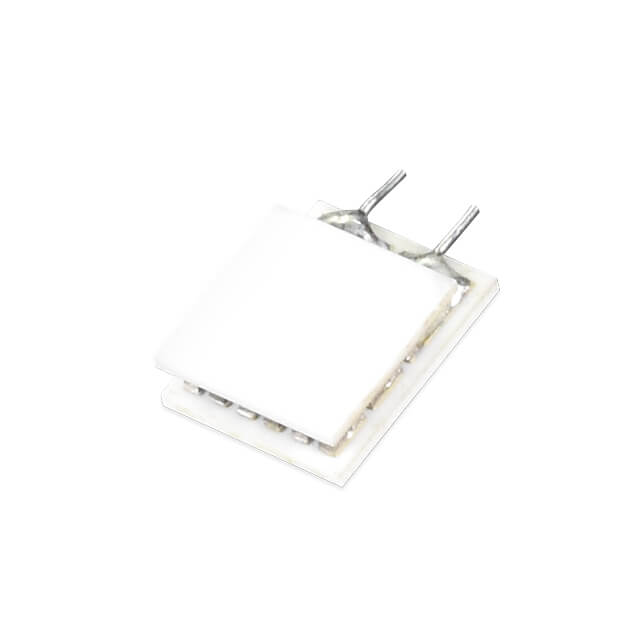

CP147660-195
ActiveCUI Devices
PELTIER, 7.6 X 6 X 1.95 MM, 1.4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP147660-195
ActiveCUI Devices
PELTIER, 7.6 X 6 X 1.95 MM, 1.4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP147660-195 |
|---|---|
| Current - Max [Max] | 1.4 A |
| Delta Tmax @ Th | 70 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 1.95 mm |
| Operating Temperature | 150 °C |
| Qmax @ Th | 1.6 W |
| Resistance | 1.17 Ohms |
| Size / Dimension [x] | 7.6 mm |
| Size / Dimension [y] | 6 mm |
| Voltage - Max [Max] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 60 | $ 25.96 | |
| 120 | $ 25.27 | |||
Description
General part information
CP147660 Series
Peltier Module 1.6W @ 27°C 1.4 A 150°C
