PPT-1/8

Active

Bertech

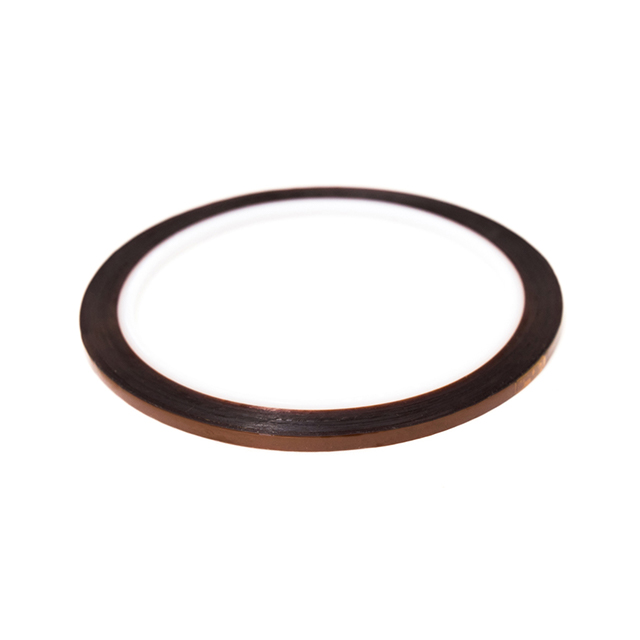

TAPE MASKING AMBER 1/8"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPT-1/8

Active

Bertech

TAPE MASKING AMBER 1/8"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPT-1/8

Adhesive	Silicone
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range [Max]	230 °C, 260 °C
Temperature Range [Min]	-100 °F, -73 °C
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking, High Temperature
Width	0.125 "
Width	0.13 in
Width	3.18 mm

PPT-1 Series

Part	Shelf Life	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Length	Length	Length	Usage	Shelf Life Start	Thickness	Thickness	Thickness	Width	Width	Width	Adhesive	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Width
Bertech PPT-1/8	18 Months	Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide	-100 °F -73 °C	230 °C 260 °C	36 yd	32.9 m	108 ft	Masking High Temperature	Date of Manufacture	2.5 mils	0.064 mm	0.0025 "	0.125 "	0.13 in	3.18 mm	Silicone
Bertech PPT-1 1/8		Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide			36 yd	32.9 m	108 ft	Masking High Temperature		2.5 mils	0.064 mm	0.0025 "		1.13 in	28.58 mm	Silicone	-73 °C	260 °C	-99 °F	500 °F
Bertech PPT-1 5/8		Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide			36 yd	32.9 m	108 ft	Masking High Temperature		2.5 mils	0.064 mm	0.0025 "		1.63 in 41.28 mm		Silicone	-73 °C	260 °C	-99 °F	500 °F	1 5/8
Bertech PPT-1 1/4		Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide			36 yd	32.9 m	108 ft	Masking High Temperature		2.5 mils	0.064 mm	0.0025 "		1.25 in	31.75 mm	Silicone	-73 °C	260 °C	-99 °F	500 °F
Bertech PPT-1/2	18 Months	Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide	-100 °F -73 °C	230 °C 260 °C	36 yd	32.9 m	108 ft	Masking High Temperature	Date of Manufacture	2.5 mils	0.064 mm	0.0025 "	0.5 in	0.5 in	12.7 mm	Silicone
Bertech PPT-1 3/8		Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide			36 yd	32.9 m	108 ft	Masking High Temperature		2.5 mils	0.064 mm	0.0025 "		1.38 "	34.93 mm	Silicone	-73 °C	260 °C	-99 °F	500 °F
Bertech PPT-1/4	18 Months	Amber	1 mils	0.025 mm	0.001 "	1.5 mils	0.0015 in	0.038 mm	Masking	Polyimide	-100 °F -73 °C	230 °C 260 °C	36 yd	32.9 m	108 ft	Masking High Temperature	Date of Manufacture	2.5 mils	0.064 mm	0.0025 "	0.25 in	0.25 in	6.35 mm	Silicone

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.82
		2	$ 7.45
		3	$ 7.24
		5	$ 6.98
		7	$ 6.82
		10	$ 6.65
		25	$ 6.23
		50	$ 5.92
		100	$ 5.63

Description

General part information

PPT-1 Series

Masking Tape Silicone Adhesive Amber 0.13" (3.18mm) 1/8" X 108' (32.9m) 36 yds
