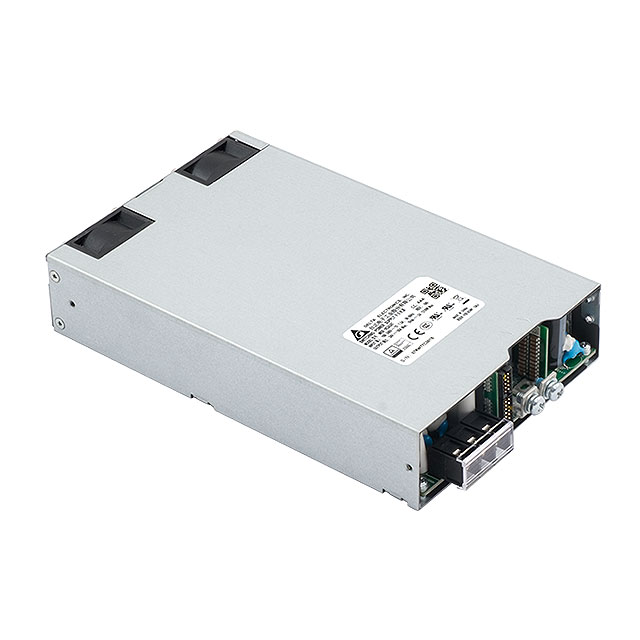

MEB-1K2A24T AAA

Active

Delta Electronics

AC/DC CONVERTER 24V 1200W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 24V 1200W

Technical Specifications

Parameters and characteristics for this part

Specification	MEB-1K2A24T AAA

Applications	ITE (Commercial), Medical
Approval Agency	TUV, UL, SIQ, CE, EN, CB Scheme
Current - Output 1	50 A
Efficiency	93 %
Features	PMBus™, Standby Output, Remote On/Off, Universal Input, PFC, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1200 W
Size / Dimension	40.5 mm, 204 mm, 127 mm
Size / Dimension [x]	8.03 "
Size / Dimension [y]	5 "
Size / Dimension [z]	1.59 "
Standard Number	50581, 60950-1
Type	Conformal Coated, Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Size / Dimension	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Applications	Efficiency	Minimum Load Required	Type	Mounting Type	Voltage - Isolation	Number of Outputs	Standard Number	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency
Delta Electronics MEB-1K2A48T AAA	48 V	40.5 mm 127 mm 204 mm	5 "	1.59 "	8.03 "	25 A	ITE (Commercial) Medical	94 %		Conformal Coated Enclosed	Chassis Mount	4000 V	1	50581 55011 55032 60950-1	1200 W	Adjustable Output Load Sharing PFC PMBus™ Remote On/Off Standby Output Universal Input	-20 °C	70 °C	CB Scheme CE EN SIQ TUV UL
Delta Electronics MEB-1K2A24T AAA	24 V	40.5 mm 127 mm 204 mm	5 "	1.59 "	8.03 "	50 A	ITE (Commercial) Medical	93 %		Conformal Coated Enclosed	Chassis Mount	4000 V	1	50581 60950-1	1200 W	Adjustable Output PFC PMBus™ Remote On/Off Standby Output Universal Input	-20 °C	70 °C	CB Scheme CE EN SIQ TUV UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
