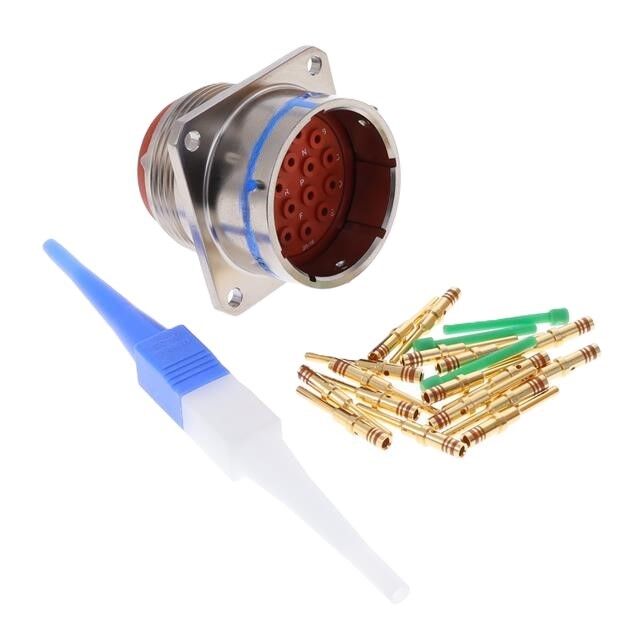

D38999/26WE26HC

Active

Corsair

D38999/26WE26HC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WE26HC

Active

Corsair

D38999/26WE26HC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WE26HC

Applications	Aerospace, Aviation, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Self Locking
Grade	Military
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Orientation	C
Qualification	MIL-DTL-38999 Series II
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

D38999/26WE Series

Part	Mounting Type	Shielding	Shell Size, MIL	Orientation	Color	Termination	Applications	Number of Positions	Contact Finish - Mating	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Contact Size	Grade	Ingress Protection	Features	Shell Finish	Contact Type	Type	Note	Shell Material	Insert Material	Housing Color	Qualification	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Current Rating (Amps)	Number of Positions [x]	Number of Positions [custom]	Contact Size	Voltage Rating	Material Flammability Rating
Corsair D38999/26WE99HC	Free Hanging (In-Line)	Shielded	E	C	Olive Drab	Crimp	Aviation Marine Military	23	Gold	Male Pins Plug	99	17
Corsair D38999/26WE99PCL	Free Hanging (In-Line)	Shielded	E	C				23		Plug Housing	99	17	16 20	2 21	Military	Environment Resistant	Coupling Nut	Cadmium	Crimp	For Male Pins	Contacts Not Included	Aluminum	Thermoplastic	Olive Drab	MIL-DTL-38999 Series III	Circular	-65 ░C	347 °F
Corsair D38999/26WE2SC	Free Hanging (In-Line)	Shielded	E	C	Olive Drab	Crimp	Aviation Marine Military		Gold	Female Sockets Plug						IP67 - Dust Tight Waterproof	Coupling Nut	Olive Drab Cadmium				Aluminum	Thermoplastic				-65 ░C	347 °F	17-2	Metal	1.27 µm	50 µin	Copper Alloy	5 A 45 A	38	1
Corsair D38999/26WE8PAL	Free Hanging (In-Line)	Shielded	E	A				8		Plug Housing					Military	Environment Resistant	Coupling Nut	Cadmium	Crimp	For Male Pins	Contacts Not Included	Aluminum	Thermoplastic	Olive Drab	MIL-DTL-38999 Series III	Circular	-65 ░C	347 °F	17-8								16
Corsair D38999/26WE8HC	Free Hanging (In-Line)	Shielded	E	C	Olive Drab	Crimp	Aviation Marine Military	8	Gold	Male Pins Plug																			17-8
Corsair D38999/26WE8HA	Free Hanging (In-Line)	Shielded	E	A	Olive Drab	Crimp	Aerospace Aviation Military	8	Gold	Male Pins Plug																			17-8
Corsair D38999/26WE26PN	Free Hanging (In-Line)	Shielded	E	N	Olive Drab	Crimp	Aviation Marine Military	26	Gold	Male Pins Plug	26	17				IP67 - Dust Tight Waterproof	Coupling Nut	Olive Drab Cadmium				Aluminum	Thermoplastic				-65 ░C	347 °F		Metal	1.27 µm	50 µin	Copper Alloy	7.5 A
Corsair D38999/26WE99HA	Free Hanging (In-Line)	Shielded	E	A	Olive Drab	Crimp	Aviation Marine Military	23	Gold	Male Pins Plug	99	17
Corsair D38999/26WE99PA	Free Hanging (In-Line)	Shielded	E	A	Olive Drab	Crimp	Aviation Marine Military	23	Gold	Male Pins Plug	99	17				IP67 - Dust Tight Waterproof	Coupling Nut	Olive Drab Cadmium				Aluminum	Thermoplastic				-65 ░C	347 °F		Metal	1.27 µm	50 µin	Copper Alloy	7.5 A 13 A
Corsair D38999/26WE26HC	Free Hanging (In-Line)	Shielded	E	C	Olive Drab	Crimp	Aerospace Aviation Military	26	Gold	Male Pins Plug	26	17			Military	Weathertight	Self Locking						Thermoplastic		MIL-DTL-38999 Series II		-65 ░C	150 °C					Copper Alloy					500 VAC	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 128.92
		10	$ 118.61
		50	$ 109.12
		100	$ 100.39
		500	$ 92.36

Description

General part information

D38999/26WE Series

26 Position Circular Connector Plug, Male Pins Crimp
