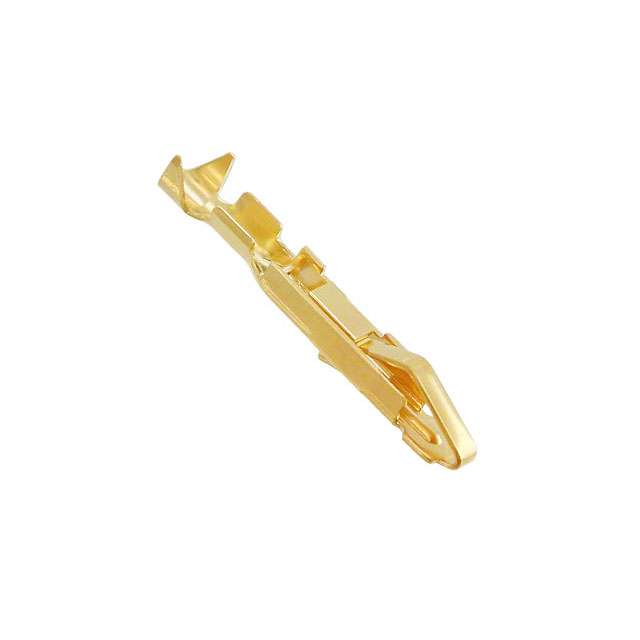

DR-SC24-1-7000
ActiveJAE Electronics
CONN SOCKET 24-28AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DR-SC24-1-7000
ActiveJAE Electronics
CONN SOCKET 24-28AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DR-SC24-1-7000 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 7000 | $ 0.11 | ||
| 14000 | $ 0.10 | |||
| 35000 | $ 0.10 | |||
| 49000 | $ 0.09 | |||
Description
General part information
DR-SC24 Series
Socket Contact Gold 24-28 AWG Crimp
Documents
Technical documentation and resources
