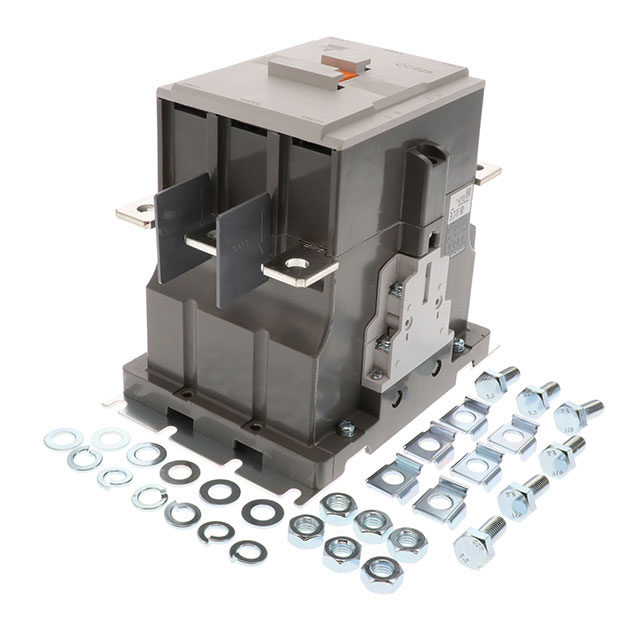

CC225SAD100/200
ActiveCARLO GAVAZZI
3P CONT S 100/200 VACDC 2NO2NC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC225SAD100/200 |
|---|---|
| Coil Voltage [Max] | 200 VAC |
| Coil Voltage [Min] | 100 VAC/DC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 225 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 70 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -5 °C |
| Release Time | 70 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 948.10 | |
| 10 | $ 900.70 | |||
Description
General part information
CC225SA Series
3P CONT S 100/200 VACDC 2NO2NC
