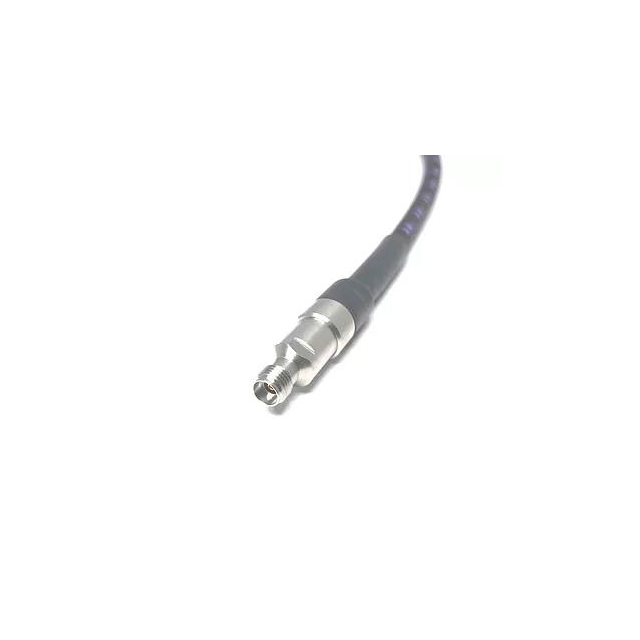

WT200-2F12F1-12INCH
ActiveWITHWAVE CO LTD
COAX CBL 2.4MM TO 2.4MM 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WT200-2F12F1-12INCH |
|---|---|
| 1st Connector | 2.4mm Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 2.4 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Color | Black |
| Frequency - Max [Max] | 50 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style [Max] | 2.4 mm |
| Style [Min] | 2.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 384.80 | |
| 10 | $ 365.60 | |||
| 25 | $ 346.30 | |||
| 50 | $ 327.10 | |||
Description
General part information
WT200-2F12F1 Series
Cable Assembly Coaxial 2.4mm to 2.4mm 12.00" (304.80mm)
