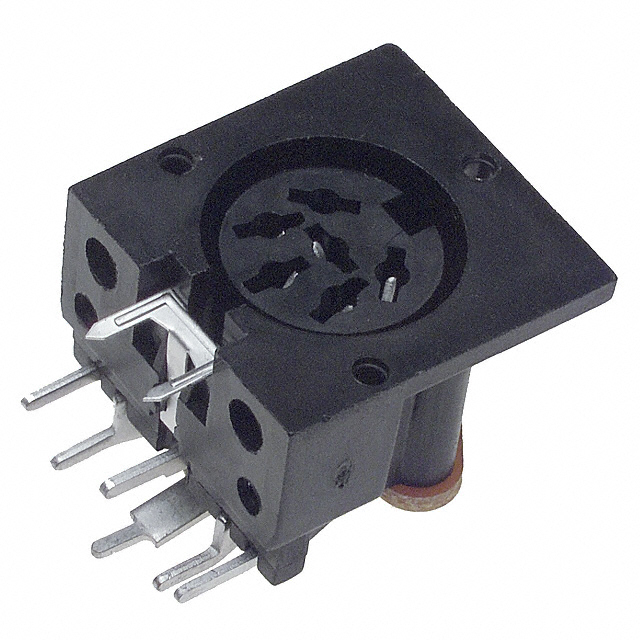

SDS-60J

Active

CUI Devices

CONN RCPT FMALE DIN 6POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 6POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SDS-60J

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	DIN (240 Degree)
Shielding	Unshielded
Termination	Solder
Voltage Rating	100 VAC

Part	Number of Positions	Shielding	Fastening Type	Voltage Rating	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Primary Material	Termination	Orientation	Shell Size - Insert	Features	Shell Material	Material Flammability Rating	Current Rating (Amps)	Connector Type
CUI Devices SDS-60J	6	Unshielded	Push-Pull	100 VAC	Black	Brass	85 °C	-40 °C	Through Hole Right Angle	Plastic	Solder	Keyed	DIN (240 Degree)	Ground	Polybutylene Terephthalate (PBT)	UL94 V-0	2 A	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
