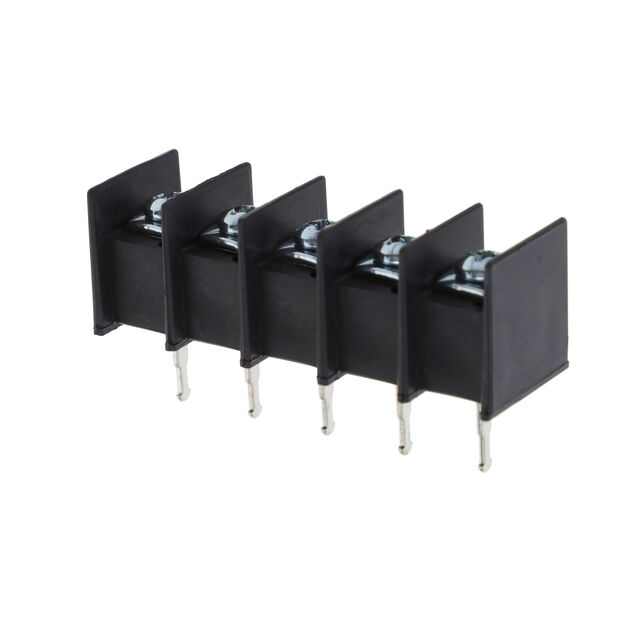

431201-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

431201-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	431201-05-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret
Current Rating (Amps)	20 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	5
Number of Rows	1
Number of Wire Entries	5
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

431201 Series

Part	Number of Rows	Barrier Type	Material - Insulation	Bottom Termination	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Current Rating (Amps)	Material Flammability Rating	Terminal Block Type	Number of Wire Entries [custom]	Number of Circuits	Mounting Type	Voltage Rating	Pitch [x]	Pitch [x]	Number of Wire Entries
Curtis Industries 431201-22-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block	22	22	Through Hole	600 V	11.12 mm	0.438 in
Curtis Industries 431201-23-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block	23	23	Through Hole	600 V	11.12 mm	0.438 in
Curtis Industries 431201-27-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block	27	27	Through Hole	600 V	11.12 mm	0.438 in
Curtis Industries 431201-03-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block		3	Through Hole	600 V	11.12 mm	0.438 in	3
Curtis Industries 431201-21-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block		21	Through Hole	600 V	11.12 mm	0.438 in	21
Curtis Industries 431201-01-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block	1	1	Through Hole	600 V
Curtis Industries 431201-05-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block		5	Through Hole	600 V	11.12 mm	0.438 in	5
Curtis Industries 431201-04-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block		4	Through Hole	600 V	11.12 mm	0.438 in	4
Curtis Industries 431201-09-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block			Through Hole	600 V	11.12 mm	0.438 in	9
Curtis Industries 431201-26-0	1	2 Wall (Dual)	Polypropylene (PP)	Solder Turret	105 C	12 AWG	22 AWG	Screws	20 A	UL94 V-0	Barrier Block		26	Through Hole	600 V	11.12 mm	0.438 in	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.13
		10	$ 3.91
		25	$ 3.66
		50	$ 3.25
		100	$ 3.18
		250	$ 2.93
		500	$ 2.65
		1000	$ 2.35

Description

General part information

431201 Series

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
