HVGC-150-1050AB

Active

MEAN WELL USA Inc.

I/P 180~528VAC O/P +143V1050MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

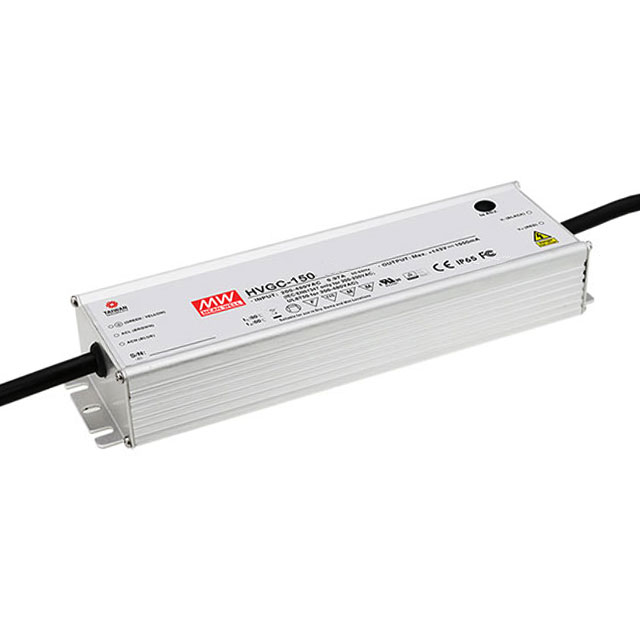

HVGC-150-1050AB

Active

MEAN WELL USA Inc.

I/P 180~528VAC O/P +143V1050MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVGC-150-1050AB

Approval Agency	CB, FCC, EAC, cURus, CE, TUV
Current - Output (Max) [Max]	1.05 A
Dimming	Analog, PWM
Efficiency	90 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	150 W
Ratings	IP65
Size / Dimension [x]	221 mm
Size / Dimension [x]	8.7 "
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	38.8 mm
Size / Dimension [z]	1.53 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	143 V
Voltage - Output [Min]	15 V

HVGC-150 Series

Part	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Mounting Type	Ratings	Efficiency	Voltage - Isolation	Type	Topology	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Approval Agency	Voltage - Input (Max)	Features	Dimming
MEAN WELL USA Inc. HVGC-150-1400A	1	107 V	12 V	150 W	Chassis Mount	IP65	90 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	1.4 A	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP
MEAN WELL USA Inc. HVGC-150-700B	1	215 V	21 V	151 W	Chassis Mount	IP67	91 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	700 mA	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP	Analog PWM
MEAN WELL USA Inc. HVGC-150-1400B	1	107 V	12 V	150 W	Chassis Mount	IP67	90 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	1.4 A	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP	Analog PWM
MEAN WELL USA Inc. HVGC-150-700A	1	215 V	21 V	151 W	Chassis Mount	IP65	91 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	700 mA	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP
MEAN WELL USA Inc. HVGC-150-350A	1	428 V	42 V	150 W	Chassis Mount	IP65	91 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	350 mA	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP
MEAN WELL USA Inc. HVGC-150-1050A	1	143 V	15 V	150 W	Chassis Mount	IP65	90 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	1.05 A	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP
MEAN WELL USA Inc. HVGC-150-1050AB	1	143 V	15 V	150 W	Chassis Mount	IP65	90 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	1.05 A	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus EAC FCC TUV	528 VAC	OTP OVP SCP	Analog PWM
MEAN WELL USA Inc. HVGC-150-500B	1	300 V	30 V	150 W	Chassis Mount	IP67	91 %	3750 V	Constant Current	AC DC Converter	180 VAC	-40 °C	80 C	500 mA	2.68 "	221 mm	38.8 mm	1.53 in	68 mm	8.7 "	Wire Leads	CB CE cURus TUV	528 VAC	OTP OVP SCP	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 84.47
		5	$ 79.60
		10	$ 76.10
		25	$ 73.90

Description

General part information

HVGC-150 Series

1.05A 15 ~ 143V Constant Current LED Driver AC DC Converter Topology 1 Output
