141-12NM+
ActiveMINI-CIRCUITS

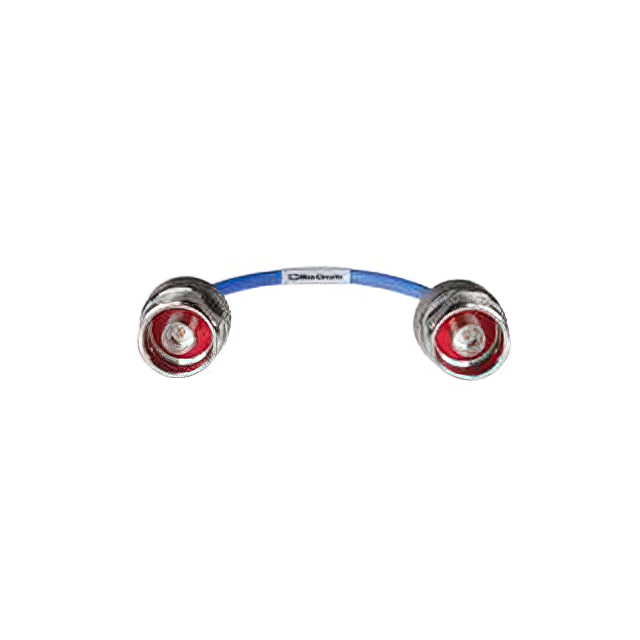

CBL ASSY NTYPE PLUG TO PLUG 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
141-12NM+
ActiveMINI-CIRCUITS
CBL ASSY NTYPE PLUG TO PLUG 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 141-12NM+ |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable .141 |
| Color | Blue |
| Frequency - Max [Max] | 18 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 30.98 | |
| 10 | $ 30.83 | |||
| 25 | $ 30.65 | |||
| 50 | $ 30.32 | |||
| 100 | $ 30.19 | |||
Description
General part information
141-12 Series
Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 12.00" (304.80mm)
