RASPC10P
ActiveSwitchcraft Inc.

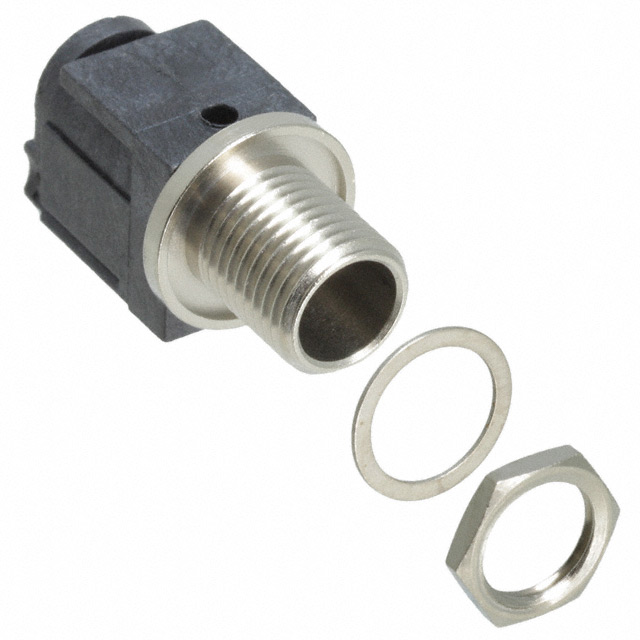

CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RASPC10P
ActiveSwitchcraft Inc.
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RASPC10P |
|---|---|
| Actual Diameter [diameter] | 0.252 ", 0.079 in |
| Actual Diameter [diameter] | 2 mm, 6.4 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 11 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Thread Size | 5/16"-32 |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.14 | |
| 10 | $ 5.55 | |||
| 25 | $ 5.25 | |||
| 50 | $ 5.12 | |||
| 100 | $ 4.86 | |||
| 300 | $ 4.35 | |||
| 500 | $ 4.10 | |||
| 1000 | $ 3.95 | |||
Description
General part information
RASPC1 Series
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole
