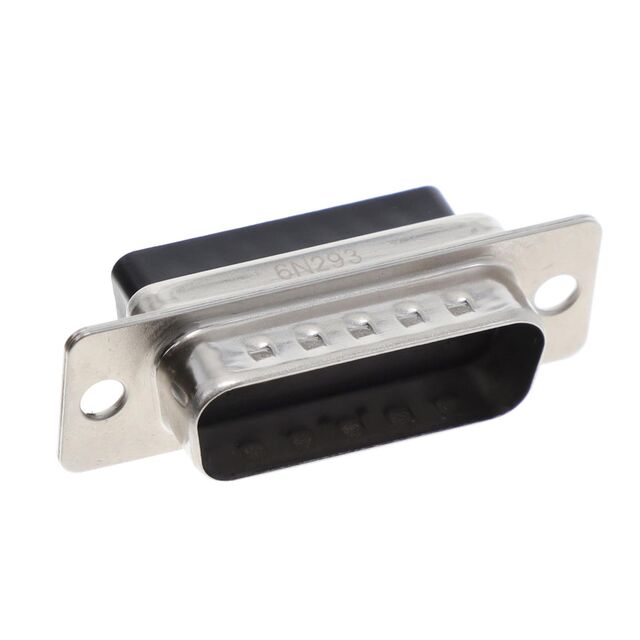

DAU-15PF-F0

Active

JAE Electronics

CONN D-SUB HOUSING PLUG 15POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN D-SUB HOUSING PLUG 15POS

Technical Specifications

Parameters and characteristics for this part

Specification	DAU-15PF-F0

Color	Black
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

Part	Shell Size, Connector Layout	Color	Connector Type	Number of Rows	Number of Positions	Dielectric Material	Note	Shell Material, Finish	Flange Feature	Contact Type	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]
JAE Electronics DAU-15P-F0R	2	Black	Plug for Male Contacts	2	15	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Clear Chromate Plated Zinc Steel	Housing/Shell (Unthreaded)	Signal	D-Sub
JAE Electronics DAU-15PF-F0	2	Black	Plug for Male Contacts	2	15	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Nickel Plated Steel	Housing/Shell (Unthreaded)	Signal	D-Sub	125 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub Connector 15 Position
