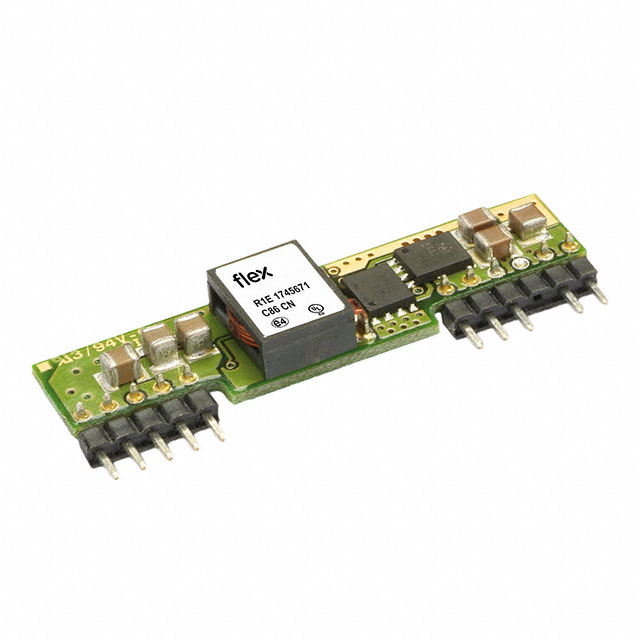

PMB4518TWP

Obsolete

Flex Power Modules

DC DC CONVERTER 0.8-3.6V 58W

Search across all available documentation for this part.

Obsolete

Flex Power Modules

DC DC CONVERTER 0.8-3.6V 58W

Technical Specifications

Parameters and characteristics for this part

Specification	PMB4518TWP

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	16 A
Efficiency	95.4 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-45 °C
Package / Case	10-SIP Module
Size / Dimension [x]	51.8 mm
Size / Dimension [x]	2.04 "
Size / Dimension [y]	8.8 mm
Size / Dimension [y]	0.35 "
Size / Dimension [z]	13.2 mm
Size / Dimension [z]	0.52 "
Standard Number	62368-1
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	3 V
Voltage - Output 1 [Max]	3.6 V
Voltage - Output 1 [Min]	0.8 V

Part	Voltage - Input (Min) [Min]	Type	Approval Agency	Package / Case	Number of Outputs	Mounting Type	Applications	Features	Efficiency	Control Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Standard Number	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Flex Power Modules PMB4518TWP	3 V	Non-Isolated PoL Module	CB CSA IEC TUV UL	10-SIP Module	1	Through Hole	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	95.4 %	Active Low Enable	16 A	5.5 V	-45 °C	115 °C	0.8 V	3.6 V	62368-1	13.2 mm	0.52 "	8.8 mm	51.8 mm	2.04 "	0.35 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 16A 3V - 5.5V Input
