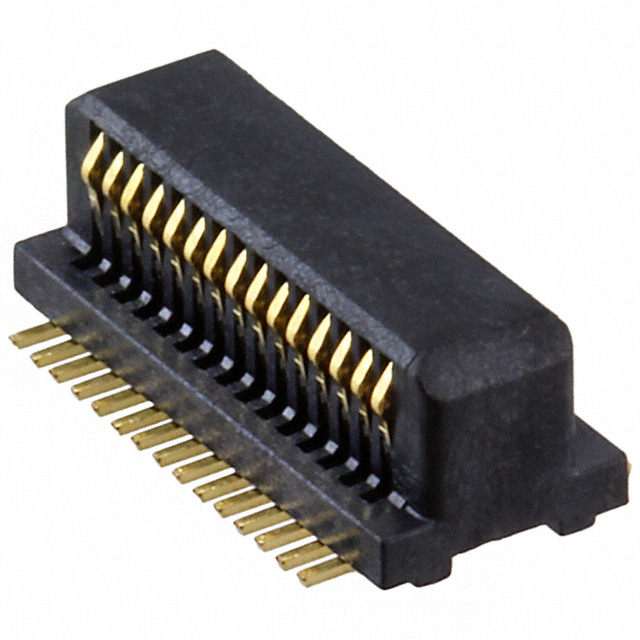

WR-30S-VF-N1

Active

JAE Electronics

CONN RCPT 30POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-30S-VF-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Contact Finish	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]
JAE Electronics WR-30S-VF-N1-R1500	30	3.25 mm	0.128 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount	4 mm 5 mm 6 mm	0.5 mm	0.02 in
JAE Electronics WR-30S-VFH30-N1	30	6.25 mm	0.246 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount	7 mm 8 mm 9 mm	0.5 mm	0.02 in
JAE Electronics WR-30S-VFH30-N1-R1000	30	6.25 mm	0.246 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount	7 mm 8 mm 9 mm	0.5 mm	0.02 in
JAE Electronics WR-30S-VFH05-N1-R1500	30	3.75 mm	0.148 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount	4.5 mm 5.5 mm 6.5 mm	0.5 mm	0.02 in
JAE Electronics WR-30S-VF-N1	30	3.25 mm	0.128 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount	4 mm 5 mm 6 mm	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	190	$ 2.67

General part information

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
