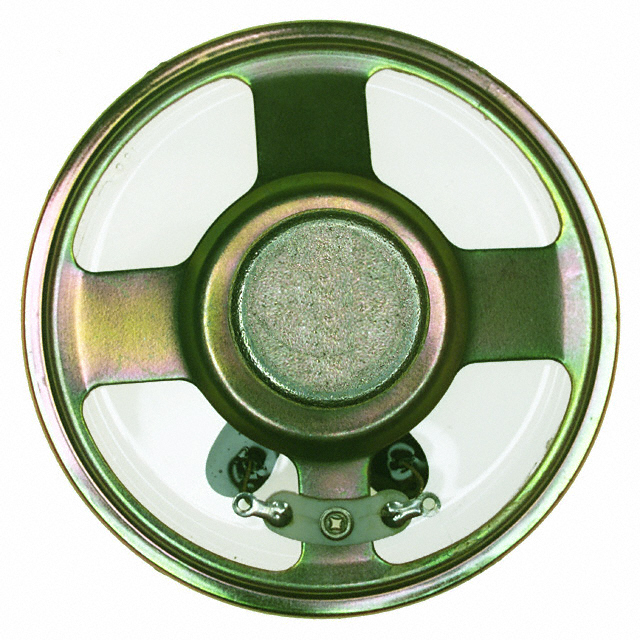

GA0501M

Active

CUI Devices

SPEAKER 8OHM 250MW TOP PORT 85DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 250MW TOP PORT 85DB

Technical Specifications

Parameters and characteristics for this part

Specification	GA0501M

Efficiency - dBA	85 dBA
Efficiency - Testing	1 mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	500 Hz
Frequency Range [Max]	7.8 kHz
Frequency Range [Min]	500 Hz
Height - Seated (Max) [Max]	18.5 mm
Height - Seated (Max) [Max]	0.728 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Alnico (AlNiCo)
Port Location	Top
Power - Max [Max]	500 mW
Power - Rated	0.25 W
Shape	Round
Size / Dimension [diameter]	1.969 in
Size / Dimension [diameter]	50 mm
Technology	Magnetic
Termination	Solder Eyelet(s)
Type	General Purpose

Part	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency Range [Min]	Frequency Range [Max]	Efficiency - Testing	Type	Frequency - Self Resonant	Power - Rated	Material - Cone	Technology	Shape	Efficiency - dBA	Efficiency - Type	Material - Magnet	Port Location	Termination	Power - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
CUI Devices GA0501M	8 Ohms	1.969 in	50 mm	500 Hz	7.8 kHz	1 mW/100mm	General Purpose	500 Hz	0.25 W	Polyester Polyethylene Terephthalate (PET)	Magnetic	Round	85 dBA	Sound Pressure Level (SPL)	Alnico (AlNiCo)	Top	Solder Eyelet(s)	500 mW	18.5 mm	0.728 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose Speaker 250 mW 500 Hz ~ 7.8 kHz Top Round
