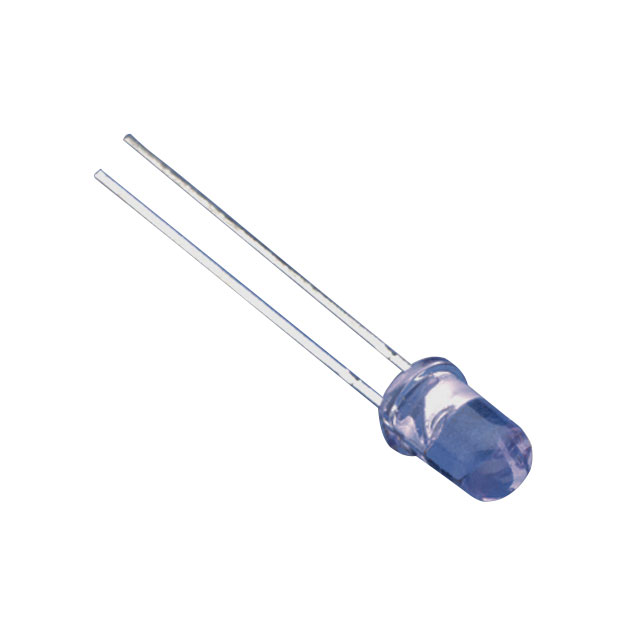

VTE1295H

Active

Excelitas Technologies

IR LED CW-PULSD 5.5MW/CM2 NRROW

Search across all available documentation for this part.

Active

Excelitas Technologies

IR LED CW-PULSD 5.5MW/CM2 NRROW

Technical Specifications

Parameters and characteristics for this part

Specification	VTE1295H

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	39 mW/sr
Type	Infrared (IR)
Viewing Angle	16 °
Voltage - Forward (Vf) (Typ)	1.5 V
Wavelength	880 nm

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Viewing Angle	Wavelength	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Type	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)
Excelitas Technologies VTE1295H	Through Hole	-40 °C	100 °C	Top View	16 °	880 nm	Radial	39 mW/sr	Infrared (IR)	100 mA	1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 880nm 1.5V 100mA 39mW/sr @ 100mA 16° Radial
