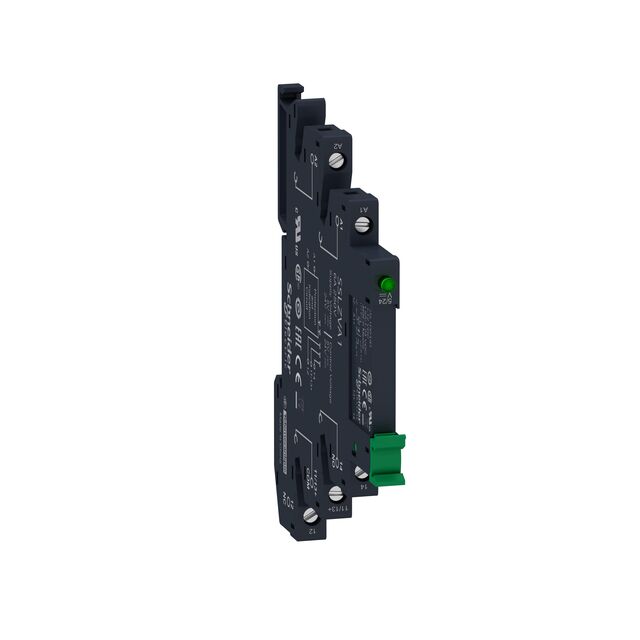

SSL1D101JDPV

Active

SQUARE D BY SCHNEIDER ELECTRIC

SSR RELAY SPST-NO 100MA 1-48V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SSR RELAY SPST-NO 100MA 1-48V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Load Current	Mounting Type	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Supplier Device Package	Output Type	Voltage - Input [Min]	Voltage - Input [Max]
SQUARE D BY SCHNEIDER ELECTRIC SSL1D03BD	4-SIP Module	3.5 A	Through Hole	PC Pin	1 V	24 V	-20 C	70 °C	CE CSA GOST UL	4-SIP	DC	15 V	30 V
SQUARE D BY SCHNEIDER ELECTRIC SSL1D101BD	4-SIP Module	100 mA	Through Hole	PC Pin	1 V	48 V	-20 C	70 °C	CE CSA GOST UL	4-SIP	DC	16 V	30 V
SQUARE D BY SCHNEIDER ELECTRIC SSL1D03JDPV	Module	3.5 A	DIN Rail	Screw Terminal	1 V	24 V	-20 C	70 °C	CE CSA GOST UL		DC	4 V	12 V
SQUARE D BY SCHNEIDER ELECTRIC SSL1D03JD	4-SIP Module	3.5 A	Through Hole	PC Pin	1 V	24 V	-20 C	70 °C	CE CSA GOST UL	4-SIP	DC	3 V	12 V
SQUARE D BY SCHNEIDER ELECTRIC SSL1D101JDPV	Module	100 mA	DIN Rail	Screw Terminal	1 V	48 V	-20 C	70 °C	CE CSA GOST UL		DC	4 V	12 V
SQUARE D BY SCHNEIDER ELECTRIC SSL1D101JD	4-SIP Module	100 mA	Through Hole	PC Pin	1 V	48 V	-20 C	70 °C	CE CSA GOST UL	4-SIP	DC	3 V	12 V
SQUARE D BY SCHNEIDER ELECTRIC SSL1D101BDPV	Module	100 mA	DIN Rail	Screw Terminal	1 V	48 V	-20 C	70 °C	CE CSA GOST UL		DC	16 V	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) Module
