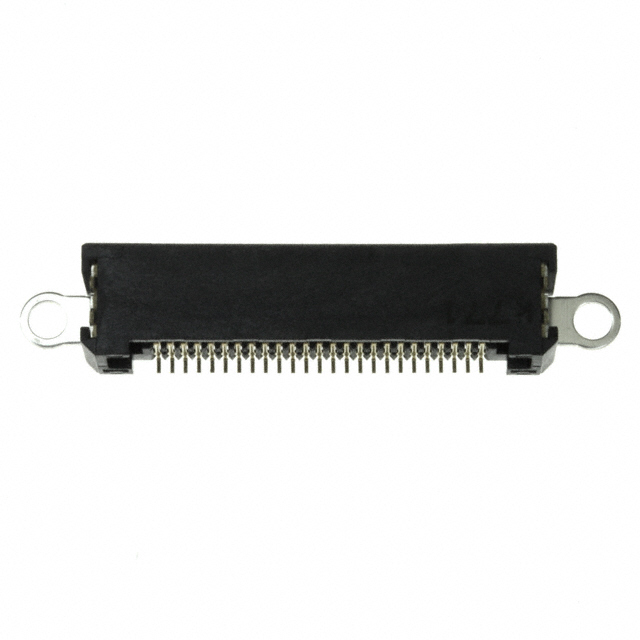

PM1M050H1AE
ObsoleteJAE Electronics
CONN PLUG 50POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
PM1M050H1AE
ObsoleteJAE Electronics
CONN PLUG 50POS R/A SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM1M050H1AE |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board | 0.21 in |
| Height Above Board | 5.33 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
PM1F050 Series
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Mounting Type | Pitch [x] | Pitch [x] | Features | Height Above Board | Height Above Board | Contact Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 50 | 4 Áin | 0.1 Ám | 2 | Through Hole Right Angle | 0.8 mm | 0.031 in | Board Guide | 0.213 in | 5.4 mm | Gold | Receptacle Outer Shroud Contacts |
JAE Electronics | 50 | 4 Áin | 0.1 Ám | 2 | Through Hole Right Angle | 0.8 mm | 0.031 in | Board Guide | 0.213 in | 5.4 mm | Gold | Receptacle Outer Shroud Contacts |
JAE Electronics | 50 | 4 Áin | 0.1 Ám | 2 | Surface Mount Right Angle | 0.8 mm | 0.031 in | Board Guide | 0.21 in | 5.33 mm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM1F050 Series
50 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
