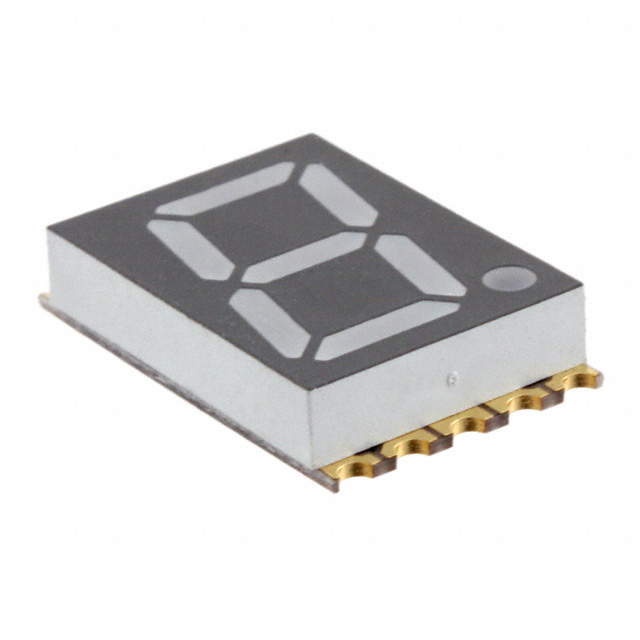

LDS-SMHTA5602RISUG
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
LDS-SMHTA5602RISUG
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-SMHTA5602RISUG |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 4.5 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) | 65 mW |
| Size / Dimension [x] | 0.154 in |
| Size / Dimension [x] | 3.9 mm |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [z] | 0.669 in |
| Size / Dimension [z] | 17 mm |
| Voltage - Forward (Vf) (Typ) | 2.25 V |
| Wavelength - Peak | 568 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDS-SMHTA5602 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.25V 20mA 0.669" H x 0.492" W x 0.154" D (17.00mm x 12.50mm x 3.90mm) 10-SMD, No Lead
Documents
Technical documentation and resources
No documents available
