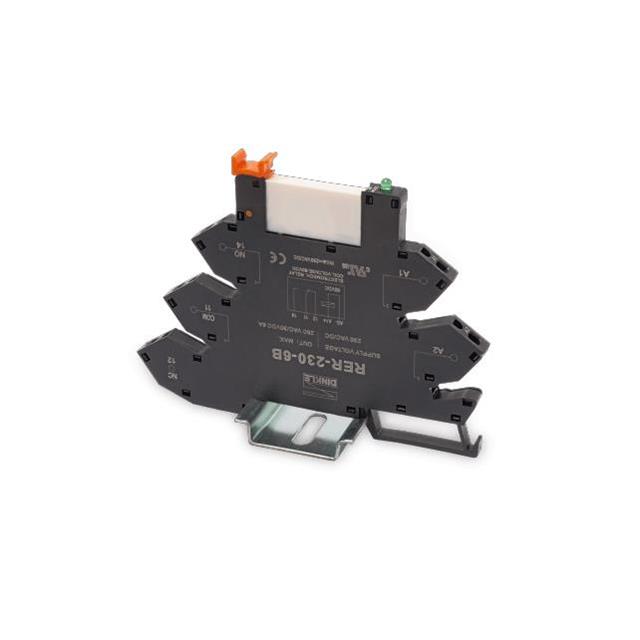

RER-230-6B
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 6A 60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RER-230-6B
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 6A 60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RER-230-6B |
|---|---|
| Coil Current | 3.7 mA |
| Coil Resistance | 62.162 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Surge Protection |
| Mounting Type | DIN Rail |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.21 | |
| 10 | $ 39.16 | |||
| 50 | $ 33.94 | |||
| 100 | $ 31.33 | |||
| 200 | $ 28.72 | |||
| 500 | $ 26.11 | |||
| 1000 | $ 23.49 | |||
Description
General part information
RER-230 Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
