A1000.1/4NPT.050

Active

American Electrical Inc.

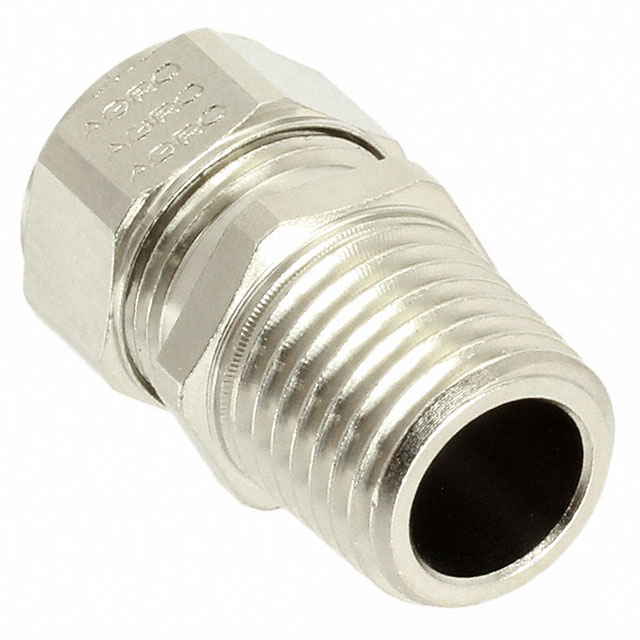

CABLE GLAND 3.5-5MM 1/4" NPT

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 3.5-5MM 1/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	A1000.1/4NPT.050

Color	Silver
Includes	Seal
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	5 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.197 in
Outside Cable Diameter (Min) [Min]	3.5 mm
Outside Cable Diameter (Min) [Min]	0.138 in
Thread Length	0.472 in
Thread Length	12 mm
Type	Cable Gland

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Type	Includes	Thread Length	Thread Length
American Electrical Inc. A1000.1/4NPT.065	IP68 IP69K	100 °C	-40 °C	5 mm	0.197 in	Silver	0.256 "	6.5 mm	Brass Nickel Plated	Cable Gland	Seal	0.472 in	12 mm
American Electrical Inc. A1000.1/4NPT.050	IP68 IP69K	100 °C	-40 °C	3.5 mm	0.138 in	Silver	0.197 in	5 mm	Brass Nickel Plated	Cable Gland	Seal	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 9.03

General part information

Cable Gland Brass, Nickel Plated 1/4" NPT Silver
