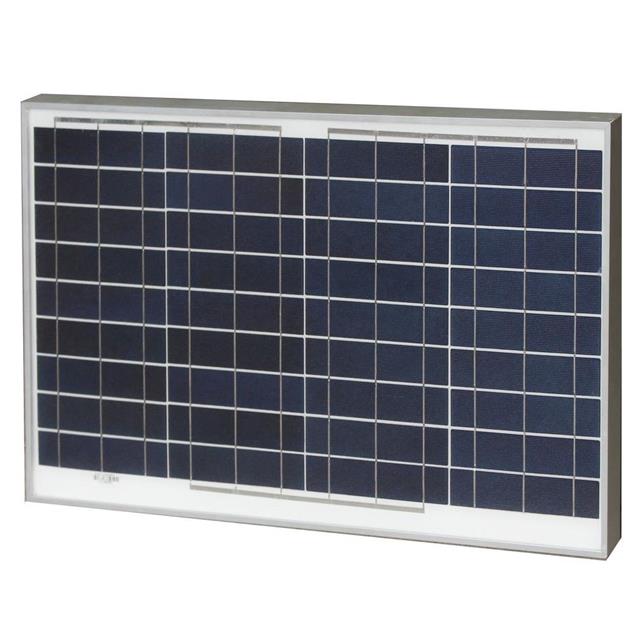

TPS-12-85W
ActiveTycon Systems Inc.
85W 12V SOLAR PANEL - 30.7 X 26.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS-12-85W
ActiveTycon Systems Inc.
85W 12V SOLAR PANEL - 30.7 X 26.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS-12-85W |
|---|---|
| Current - Short Circuit (Isc) | 4.41 A |
| Current @ Pmpp | 4.33 A |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cell (36) |
| Power (Watts) - Max [Max] | 85 W |
| Size / Dimension [x] | 30.709 in |
| Size / Dimension [x] | 780 mm |
| Size / Dimension [y] | 26.693 " |
| Size / Dimension [y] | 678 mm |
| Size / Dimension [z] | 1.378 " |
| Size / Dimension [z] | 35 mm |
| Type | Monocrystalline |
| Voltage - Open Circuit | 23.7 V |
| Voltage @ Pmpp | 19.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 185.09 | |
Description
General part information
TPS-12 Series
Monocrystalline Solar Cell 85 W 23.7 V
