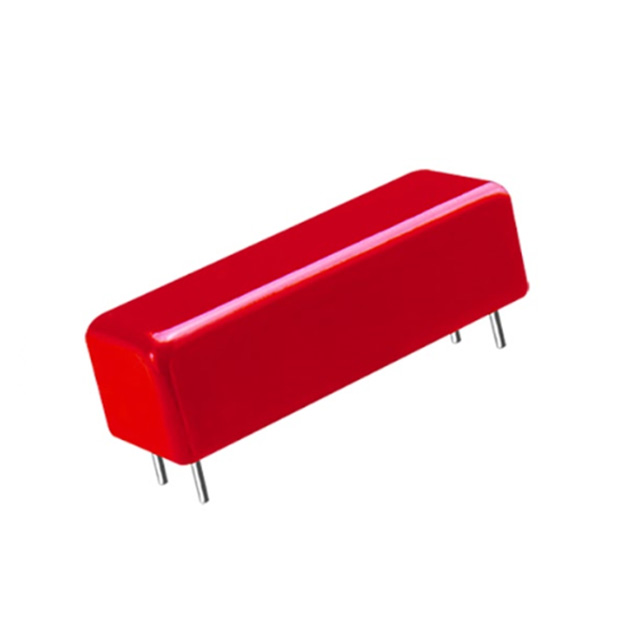

7141-12-1001

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage	Must Operate Voltage	Must Release Voltage	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Contact Rating (Current)	Operate Time	Contact Form	Release Time	Coil Type	Coil Voltage	Coil Resistance	Features
Coto Technology 7141-12-1100	150 VDC 150 VAC	9 VDC	1 VDC	Through Hole	PC Pin	85 °C	-20 C	10.9 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	12 VDC
Coto Technology 7141-24-1100	150 VDC 150 VAC	18 VDC	2 VDC	Through Hole	PC Pin	85 °C	-20 C	5.7 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	24 VDC	4.2 kOhms
Coto Technology 7141-12-1000	150 VDC 150 VAC	9 VDC	1 VDC	Through Hole	PC Pin	85 °C	-20 C	10.9 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	12 VDC
Coto Technology 7141-12-1010	150 VDC 150 VAC	9 VDC	1 VDC	Through Hole	PC Pin	85 °C	-20 C	10.9 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	12 VDC		Electrostatic Shield
Coto Technology 7141-12-1011	150 VDC 150 VAC	9 VDC	1 VDC	Through Hole	PC Pin	85 °C	-20 C	10.9 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	12 VDC		Diode Electrostatic Shield
Coto Technology 7141-05-1010	150 VDC 150 VAC	3.75 VDC	0.4 VDC	Through Hole	PC Pin	85 °C	-20 C	28.6 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	5 VDC	175 Ohms	Electrostatic Shield
Coto Technology 7141-12-1001	150 VDC 150 VAC	9 VDC	1 VDC	Through Hole	PC Pin	85 °C	-20 C	10.9 mA	250 mA	2 ms	SPDT (1 Form C)	2.5 ms	Non Latching	12 VDC		Diode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPDT 250MA 12V

Technical documentation and resources
