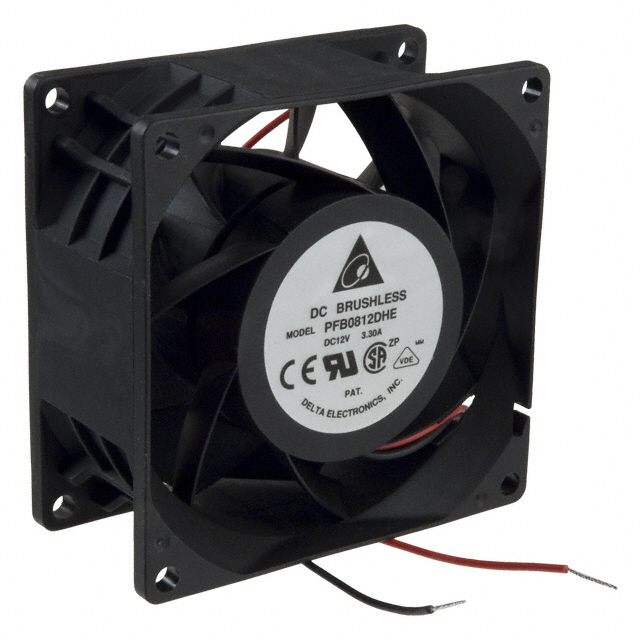

PFB0812DHE
ActiveDelta Electronics
FAN AXIAL 80X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
PFB0812DHE
ActiveDelta Electronics
FAN AXIAL 80X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFB0812DHE |
|---|---|
| Air Flow | 132.6 CFM |
| Air Flow | 3.71 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.75 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 65 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 33 W |
| RPM | 9000 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 2.03 in H2O |
| Static Pressure | 505.7 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 205.02 g |
| Weight | 0.452 lb |
| Width [y] | 38 mm |
PFB0812 Series
| Part | Material - Frame | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Approval Agency | Material - Blade | RPM | Bearing Type | Width [y] | Ingress Protection | Size / Dimension [y] | Size / Dimension [x] | Voltage - Rated | Power (Watts) | Noise | Fan Type | Weight | Weight | Static Pressure | Static Pressure | Termination | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Plastic | 3 m³/min | 107.3 CFM | -10 °C | -10 °C | 60 °C | 60 °C | 13.2 VDC | 7 V | 50000 Hrs | CE CSA UL VDE | Plastic | 7500 RPM | Ball | 38 mm | IP55 - Dust Protected Water Resistant | 80 mm | 80 mm | 12 VDC | 18.6 W | 61 dB(A) | Tubeaxial | 200.03 g | 0.441 lb | 1.368 in H2O | 340.8 Pa | 2 Wire Leads | 1.55 A | |
Delta Electronics | Plastic | 3 m³/min | 107.3 CFM | -10 °C | -10 °C | 60 °C | 60 °C | 13.2 VDC | 7 V | 50000 Hrs | CE CSA UL VDE | Plastic | 7500 RPM | Ball | 38 mm | 80 mm | 80 mm | 12 VDC | 18.6 W | 61 dB(A) | Tubeaxial | 200.03 g | 0.441 lb | 1.368 in H2O | 340.8 Pa | 2 Wire Leads | 1.55 A | ||
Delta Electronics | Plastic | 3 m³/min | 107.3 CFM | -10 °C | -10 °C | 60 °C | 60 °C | 13.2 VDC | 7 V | 50000 Hrs | CE CSA UL VDE | Plastic | 7500 RPM | Ball | 38 mm | 80 mm | 80 mm | 12 VDC | 18.6 W | 61 dB(A) | Tubeaxial | 200.03 g | 0.441 lb | 1.368 in H2O | 340.8 Pa | 3 Wire Leads | 1.55 A | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Plastic | 2.57 m³/min | 91.8 CFM | -25 °C | 60 °C | 13.8 VDC | 10.2 VDC | 50000 Hrs | CE CSA UL VDE | Plastic | 6550 RPM | Ball | 38 mm | IP56 - Dust Protected Water Resistant | 80 mm | 80 mm | 12 VDC | 11.88 W | 57.5 dB | Tubeaxial | 200.03 g | 0.441 lb | 0.974 in H2O | 242.6 Pa | 4 Wire Leads | 990 mA | GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach) | ||
Delta Electronics | Plastic | 3.71 mł/min | 132.6 CFM | -10 °C | -10 °C | 60 °C | 60 °C | 13.2 VDC | 7 V | 50000 Hrs | CE CSA UL VDE | Plastic | 9000 RPM | Ball | 38 mm | 80 mm | 80 mm | 12 VDC | 33 W | 65 dB | Tubeaxial | 205.02 g | 0.452 lb | 2.03 in H2O | 505.7 Pa | 3 Wire Leads | 2.75 A | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Plastic | 3.71 mł/min | 132.6 CFM | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | CE CSA UL VDE | Plastic | 9000 RPM | Ball | 38 mm | IP55 - Dust Protected Water Resistant | 80 mm | 80 mm | 12 VDC | 33 W | 65 dB | Tubeaxial | 205.02 g | 0.452 lb | 2.03 in H2O | 505.7 Pa | 2 Wire Leads | 2.75 A | |||
Delta Electronics | Plastic | 3.71 mł/min | 132.6 CFM | -10 °C | -10 °C | 60 °C | 60 °C | 13.2 VDC | 7 V | 50000 Hrs | CE CSA UL VDE | Plastic | 9000 RPM | Ball | 38 mm | 80 mm | 80 mm | 12 VDC | 33 W | 65 dB | Tubeaxial | 205.02 g | 0.452 lb | 2.03 in H2O | 505.7 Pa | 2 Wire Leads | 2.75 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 36.48 | |
| 10 | $ 33.94 | |||
| 25 | $ 30.54 | |||
| 90 | $ 28.00 | |||
| 180 | $ 26.30 | |||
| 270 | $ 22.91 | |||
Description
General part information
PFB0812 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 132.6 CFM (3.71m³/min) 2 Wire Leads
