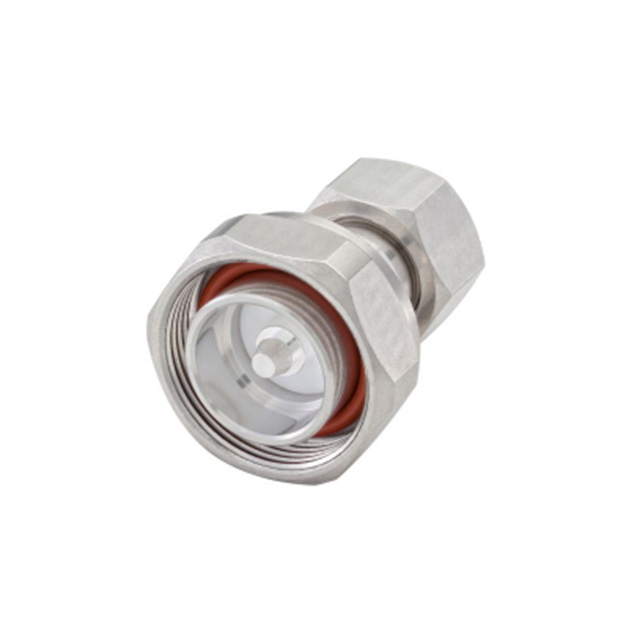

60S164-S00N1

Active

Rosenberger

CONN ADAPT 7/16 PLUG-4.3/10 PLUG

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT 7/16 PLUG-4.3/10 PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	60S164-S00N1

Adapter Series [Max]	7/16
Adapter Series [Min]	4.3/10
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin
Convert To (Adapter End)	4.3/10 Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	8.3 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Convert To (Adapter End)	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Impedance	Adapter Series [Max]	Adapter Series [Min]	Center Gender	Conversion Type	Center Contact Plating	Style	Frequency - Max [Max]	Body Finish	Center Contact Material	Body Material	Mounting Type	Convert From (Adapter End)
Rosenberger 60S164-S00N1	4.3/10 Plug Male Pin	Polytetrafluoroethylene (PTFE)	90 °C	-55 °C	Plug to Plug	50 Ohms	7/16	4.3/10	Male to Male	Between Series	Silver	Straight	8.3 GHz	White Bronze	Brass	Brass	Free Hanging (In-Line)	4.3/10 Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	11	$ 57.41

General part information

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 4.3/10 Plug, Male Pin 50 Ohms
