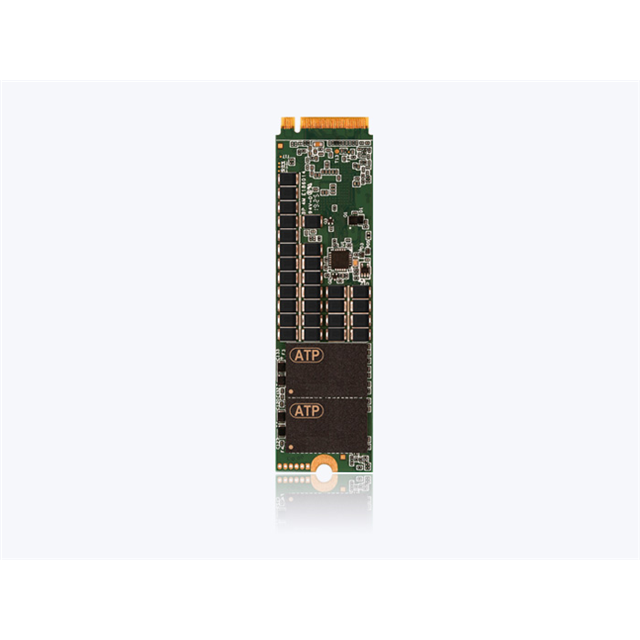

AF240GSTJA-8BAIP

Obsolete

ATP Electronics, Inc.

SSD 240GB M.2 PCIE 3D NVME

Search across all available documentation for this part.

Obsolete

ATP Electronics, Inc.

SSD 240GB M.2 PCIE 3D NVME

Technical Specifications

Parameters and characteristics for this part

Specification	AF240GSTJA-8BAIP

Form Factor	M.2 Module, PCIe
Memory Size	240 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (3D)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	80 mm
Size / Dimension [y]	22 mm
Size / Dimension [z]	3.5 mm
Speed - Read	3.4 GB/s
Speed - Write	1.14 GB/s
Type	NVMe

Part	Speed - Read	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Memory Size	Speed - Write	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Type	Form Factor	Form Factor
ATP Electronics, Inc. AF240GSSCJ-OEM	500 MB/s	69.85 mm	9.5 mm	100 mm	240 GB	500 MB/s	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	SATA III	2.5 in
ATP Electronics, Inc. AF240GSTIA-7BAIP	560 MB/s	22 mm	3.5 mm	42 mm	240 GB	450 MB/s	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (3D)	SATA III		M.2 Module
ATP Electronics, Inc. AF240GSTCJ-7BAIP	560 MB/s	69.9 mm	7 mm	100 mm	240 GB	450 MB/s	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (3D)	SATA III	2.5 in
ATP Electronics, Inc. AF240GSTJA-8BAIP	3.4 GB/s	22 mm	3.5 mm	80 mm	240 GB	1.14 GB/s	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (3D)	NVMe		M.2 Module PCIe
ATP Electronics, Inc. AF240GSTIC-7BAIP	560 MB/s	22 mm	3.35 mm	80 mm	240 GB	450 MB/s	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (3D)	SATA III		M.2 Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State Drive (SSD) FLASH - NAND (3D) 240GB NVMe M.2 Module, PCIe
